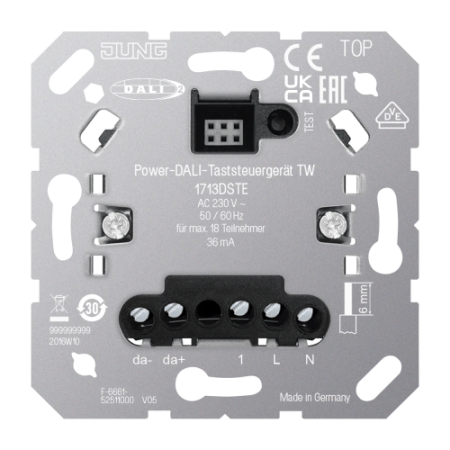

Intended use
Switching and brightness setting for luminaires with DALI interface
Setting of colour temperature for luminaires with DALI Device Type 8 for tunable white acc. to IEC 62386-209
Operation with suitable cover of the LB Management
If several automatic switches are to be used, a DALI push-button controller can be connected to up to five 3-wire satellite inserts. Parallel connection of several DALI push-button controllers with automatic switches or motion/presence detectors is not possible.
Installation in flush box with dimensions according to DIN 49073
Product characteristics
- DALI supply for a maximum of 18 subscribers
- Parallel switching of up to 4 DALI control units with the option of supplying up to 72 DALI subscribers
- Saving of minimum brightness, coldest and warmest colour temperature
- Switch-on with last brightness / colour temperature or saved switch-on brightness / colour temperature
- With centre plate 2-gang: Adjustment of the colour temperature via right rocker
- Test operation for functional test
