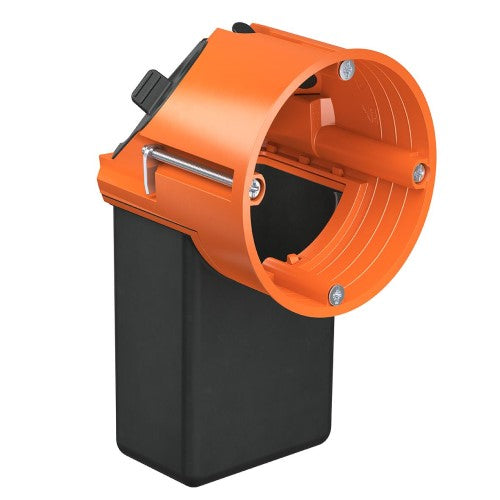

Air-tight O-range ECON® Flex electronics box with ECON® technology for energy-efficient electrical installation in accordance with EnEV and for installation under clean room or enhanced hygiene conditions. Fast installation is ideal for modernising or extending existing systems. The flexible tunnel makes it easy to install, and creates space for electronic components, cable reserves and terminals.
- for accessories and electronic components
- Air-tight design with sealing membranes
- Elastic tunnel
- Combinable with ECON® one-gang junction boxes
- For panel thickness: 7 - 30 mm
- Length: 122 mm
- Width: 71 mm
- Depth: 75 mm
- Cut hole Ø: 68 mm
- Device screws: 2
- Tube entries up to M25: 2
- Cable entries 3 x 2.5 mm² or 5 x 1.5 mm²: 2
- Cable entries 3 x 1.5 mm²: 2
- Air-tight
