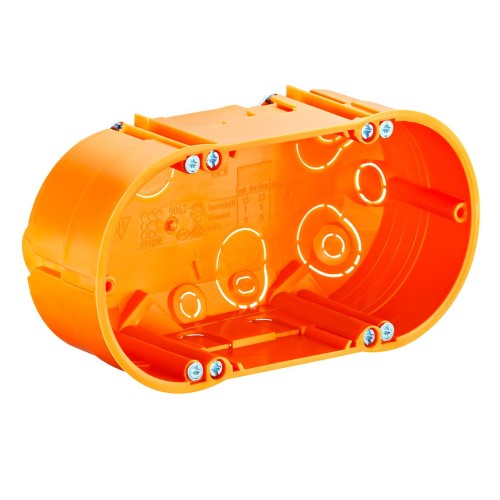

The new KAISER cavity wall installation boxes with proven mounting lug technology and improved product features. A practical design and a large selection of cable and conduit entries allow a large number of applications. Additional boxes for installation in thinly boarded walls or solid wood walls complete the wide range. VDE certification documents the high level of quality.
- for 2 electrical inserts or 1 block insert
- can also be used as a one-gang junction box (incl. 2 device inserts)
- use separator wall to separate electrical circuits Art. No. 9062-22 (not illustrated)
- with holding ring
- Depth: 47 mm
- Cut hole Ø: 2 x 68 mm
- Centre distance: 71 mm
- For panel thickness: 7 - 40 mm
- Device screws: 4
- Break-out openings Ø 20 mm: 6
- Cable entries 3 x 1.5 mm²: 4
- Cable entries 3 x 2.5 mm² or 5 x 1.5 mm²: 2
- Pack Quantity: 10 pc
