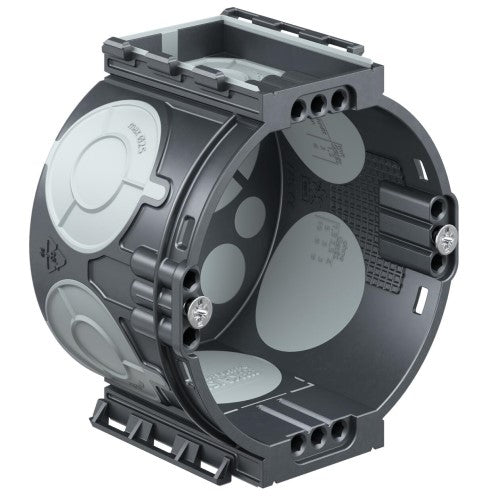

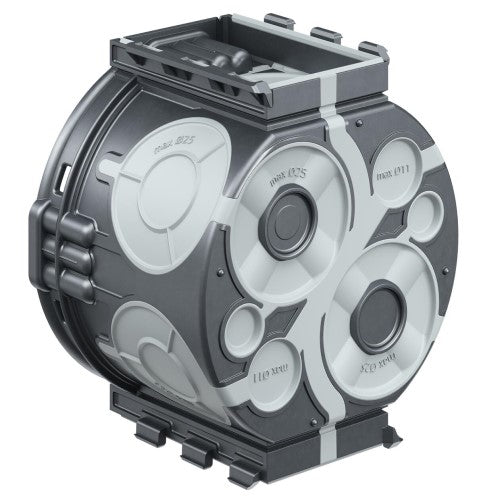

The flush-mounting boxes UP¹ ECON® combine the advantages of the UP¹ programme with certified air tightness. They enable installation in accordance with DIN 18015-5, thus ensuring energy-efficient and safe electrical installation. They offer a wide range of options for air-tight conduit and cable entry.
- Solution for plaster installation
- Side-neutral combination
- Many through-wiring possibilities
- With 4 x 3 screw domes
- Standardised combination distance 71 mm
| Depth |
46 mm |
| Screw spacing |
60 mm |
| Number of screw domes |
4 x 3 |
| Device screws |
2 |
| Splayed claw fields |
2 |
| Tool-free line and conduit entries up to M25 in the combination range |
2 |
| Toolless line and pipe entries up to M25 on the box circumference |
4 |
| Toolless cable entries up to Ø 11 mm in the bottom of the box |
2 |
| Toolless pipe entries up to M25 in the box bottom |
2 |
| Halogen-free |
Yes |
| Air-tight |
Yes |
