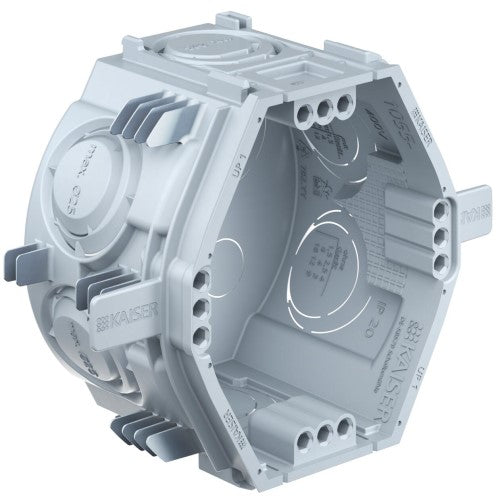

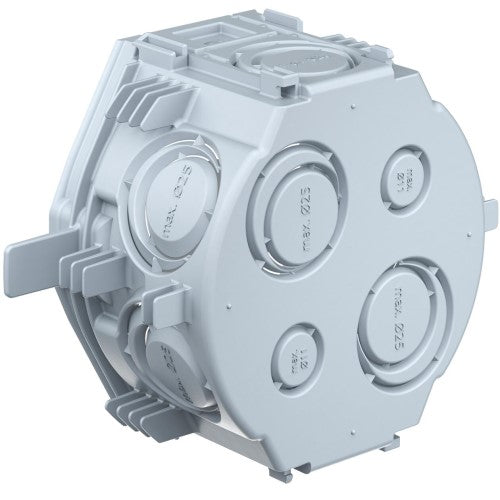

Flush-mounting boxes UP¹ Fix are synonymous with maximum installation speed: with clamping rib fastening, they can be fixed in all wall structures without plaster or PU foam – saving up to 50% installation time. 25% more installation volume creates more space for cables, terminals and devices. In addition to the advantages of the entire UP¹ family, such as open through-wiring, floor-level entries and side-neutral combinations, other features and accessories such as the plaster compensation frame with stepless compensation from 10 to 35 mm ensure convenient installation.
- More volume than conventional one-gang boxes
- Solution with quick fixing for installation without plaster
- With 4 x 3 screw domes
- Side-neutral combination
- Many through-wiring possibilities
- Standardised combination distance 71 mm
| Depth |
46 mm |
| Drill hole Ø |
82 mm |
| With depth stop |
Yes |
| Mit Schnellfixierung |
Yes |
| Screw spacing |
60 mm |
| Number of screw domes |
4 x 3 |
| Splayed claw fields |
2 |
| Combination conduit inserts M20/M25 in the combination area |
2 |
| Combined conduit entries M20/M25 in the box jacket |
4 |
| Cable entries up to Ø 11 mm in the base of the box |
2 |
| Combination conduit entries M20/M25 in the box body |
2 |
| Halogen-free |
Yes |
