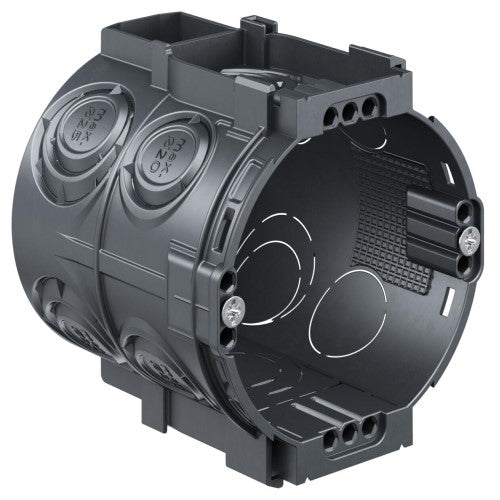

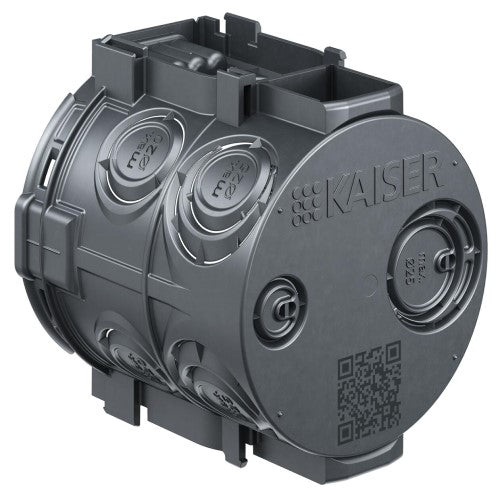

UP¹, the new flush-mounted range for electrical installations, takes installation to a whole new level and makes it easier than ever before. The tried-and-tested standard flush-mounted box has been updated and now boasts many new, practical features.
- Solution for plaster installation
- Side-neutral combination
- Many through-wiring possibilities
- With 4 x 3 screw domes and 2 expanding claw fields
- Standardised combination distance 71 mm
| Depth |
66 mm |
| Screw spacing |
60 mm |
| Number of screw domes |
4 x 3 |
| Device screws |
2 |
| Splayed claw fields |
2 |
| Ground-level cable entries up to Ø 11 mm in the combination area |
2 |
| Combination conduit inserts M20/M25 in the combination area |
2 |
| Conduit entries M20 in the box jacket |
4 |
| Combined conduit entries M20/M25 in the box jacket |
4 |
| Cable entries up to Ø 11 mm in the base of the box |
1 |
| Combination conduit entries M20/M25 in the box body |
1 |
| Halogen-free |
Yes |
