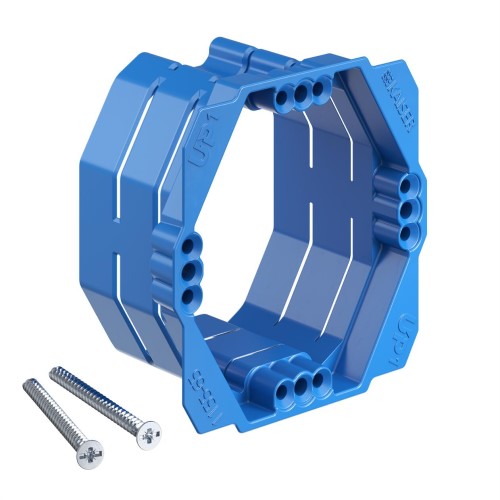

With the newly developed plaster compensation frame, even accessories in boxes that are installed too low can be installed flush with the wall and in compliance with standards. Also ideal for renovations. The plaster compensation frame is stepless adjustable and can therefore, e.g. bridge retrofitted wall plaster or tiled walls professionally. Due to the stepless immersion into the box, compatibility must be checked prior to installation for devices that take up the maximum installation space, such as SCHUKO sockets with USB charging function, dimmers, etc. Alternatively, the plaster compensation rings 1155-63 or 1155-64 can be used.
- To compensate for deep-seated boxes
- To maintain IP protection class
- With 2 fixing screws 40 mm
- Check compatibility when installing large built-in appliances
| Height |
10 - 35 mm |
| Steplessly adjustable |
Yes |
| Screw spacing |
60 mm |
| For UP¹ Fix and UP¹ ECON® Fix device boxes 1055-06 / -26 and UP¹ Fix and UP¹ ECON® Fix one-gang junction boxes 1555-06 / -26 |
Yes |
| Pack Qty |
10 |
