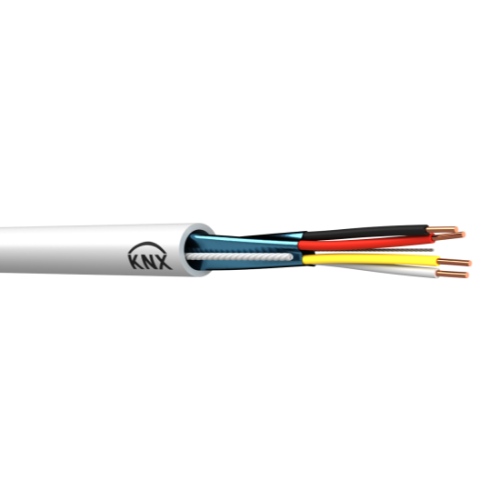

The cable has two solid pairs and an overall screen to reduce electromagnetic interference (EMI) and a white Low Smoke Non-Halogen (LSNH) sheath.
When used with other devices or equipment that have been certified by the KNX association such as heating, air conditioning, blind, or lighting controls, you can guarantee campatibility.
This cable is CPR classified to Eca.
| Conductor Material |
Bare Copper |
| Conductor Stranding |
1/0.8mm |
| Insulation Material |
PE |
| Number of Pairs |
2 |
| Screening Type |
Overall Foil |
| Sheath Material |
Low Smoke Non-Halogen |
| Sheath Colour |
White |
| Flame Retardancy |
BS EN 60332-1-2 |
| Low Smoke Emissions |
BS EN 61034-2 |
| Halogen Gas Emissions |
BS EN 60754-1, BS EN 60754-2 |
| CPR Classification |
Eca |
| Overall Diameter |
6.6 mm |
