This product is set for clearance, this is either due to the product being discontinued / end of line or is older stock out of warranty. All products set for clearance are as new and unused, for further information please contact us.
Overview

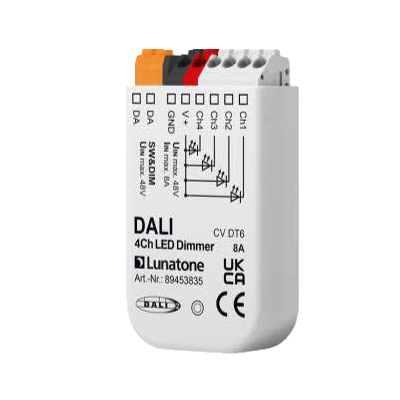

4 channel DALI LED-Dimmer
Suitable for constant voltage LED-modules with operating voltages from 12V to 48V
Operating Mode DT6: individual channel control via 4 DALI addresses
Operating Mode Colour&Dim: control by 2 DALI-addresses, one for adjusting the light level and one for adjusting the colour
SwitchDim2: 2 switch-inputs offer control of light level and colour without DALI
Dimming range 0.1%-100%
Adjustable PWM-frequency (122Hz/ 244Hz/ 488Hz/ 976Hz from FW version 4.6 on changed PWM frequencies: 250Hz / 500Hz / 1kHz)
Compact types for integration in luminaires, remote ceiling and DIN rail mounting
Supply voltage 12V to 48V DC (according to the operating voltage of the LED modules)
Type dependent max. input currents of 8A
The maximum input current can be freely distributed between the channels (max. 10A per channel)
Low standby power consumption
High efficiency
Configuration via PC-software DALI-Cockpit and DALI USB-interface
