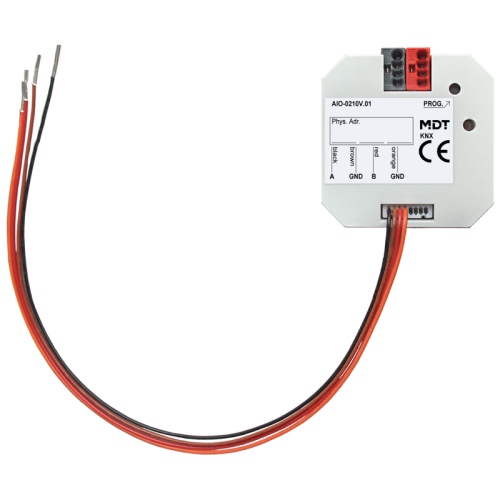

Suitable as an analogue output to control ventilation systems and other devices with a 0-10 V input. Equally suitable as an analogue input to log RPM or other 0-10 V measured data.
- Each channel can be independently configured (in-/output)
- In-/output galvanically isolated from the KNX Bus
- In-/output have a common GND
- Voltage for output operation is generated in the actuator
- No external power supply required
- Input mode: Sensor type 0-10 V / 2-10 V or 0-20 mA / 4-20 mA (selectable), measured value scaling, adjustable data point types, min/max values, wire break detection, threshold value- and step control function
- Output mode: 0-10 V, selectable data point type, control input via 1 bit / 1 byte / 2 bytes, lock function, emergency mode, Day/Night function to limit the control value
- Installation in an installation box
- Dimensions (H x W x D): 41 x 41 x 12 mm
- Fast application download (long frame support as of ETS 5)
- 3 year warranty
