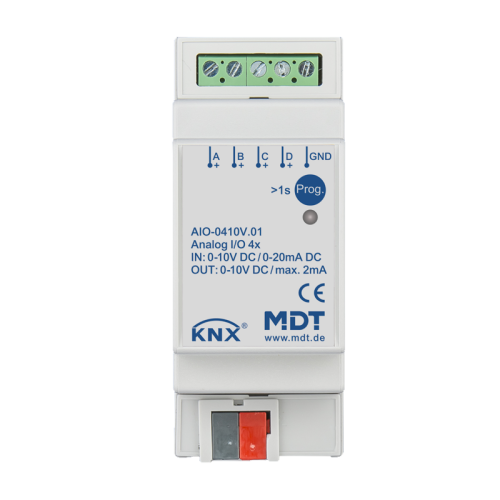

The MDT Analog In-/Output is suitable to control devices with 0-10V inputs and to catch 0-20mA/0-10V measurement data. All channels are gavanically isolated from the KNX bus and can be configured independently from each other as input or output. The input voltage range is from 0-10V or from 2-10V, optionally the inputs can be operated as current loop with 0-20mA or 4-20mA. Each input can be parameterized individually with the ETS.
- Production in Germany, certified according to ISO 9001
- Each channel can be configured indepentently (In-/output)
- In/outputs are galvanically isolated from the bus
- In/outputs are galvanically connected together
- Voltage for output operation is generated inside the actuator
- No external power supply required
- Input operation 0-10V/2-10V or 0-20mA/4-20mA (switchable)
- Conversation of measuring unit and DPT can be parameterized
- Min/max function, wire breakage detection
- Threshold and traffic light function
- Output functions 0-10V:
- Control by 1Byte, 2Byte float or 1Bit objects
- Day/night function to limit control value
- Emergency mode if given value fails
- Quick application download (long frame support with ETS 5 or higher)
- 3 years warranty
