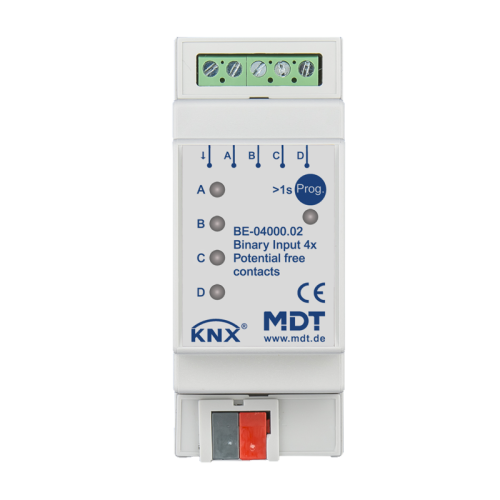

The MDT Binary Input is available in 3 versions, input detection of 24VAC/DC signals, input detection of 230VAC signals and inputs fot potential free contacts. The Binary Input reacts depending on its programmed parameters and sends a telegram on the KNX bus.
- Production in Germany, certified according to ISO 9001
- To connect push-buttons or window/auxiliary contacts
- New multi touch function, sends up to 4 values/DPTs
on the same or diffrent objects
- Innovative group control with long/extra long button press
-
4 integrated logical modules,e.g. interpretation of the inputs
(e.g. window closed or sending second object)
- NO or NC contact operation, sending contact status
- Operation of blinds and shutters, 1 and 2 button operation
- Forced setting function for each output
- Scenes, block communication object for each channel
- Operation with short/long button push and 2 objects
- Integrated pulse and switching counters with extensive counter functions
(suitable for 30ms S0 pulses)
- Cyclical sending, sending after reset
- Internally generated contact voltage of 12V
- 3 years warranty
