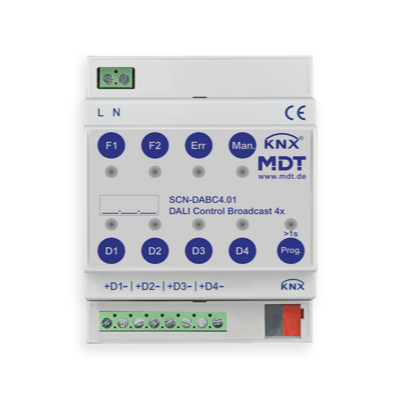

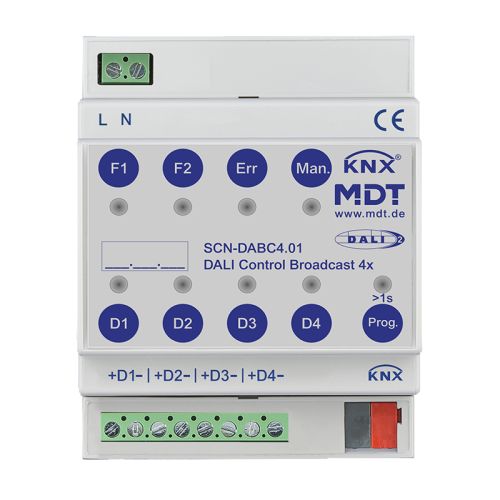

The intelligent DALI Broadcast Gateway for lighting systems in functional buildings.
Product features
- 4 intelligent DALI broadcast channels
- Supports up to 32 ECGs per channel
- Detection of defective ECGs and lamp faults
- Two integrated and separated DALI power supplies
- Supports DALI, DALI-2 standard and DALI ECG DT6 / DT8
- Innovative HSV colour control, RGB, RGBW andXY colour according to DALI DT8 standard
- Tunable White, colour temperature control
- 16 scenes with individual dimming times
- Energy saving function to switch off the ECG’s per channel (over an additional KNX switch actuator)
- GTIN recognition of ECGs
- KNX Data Secure
- Commissioning with ETS5 or higher
- Production in Germany certified according to ISO 9001
- 3 year warranty
