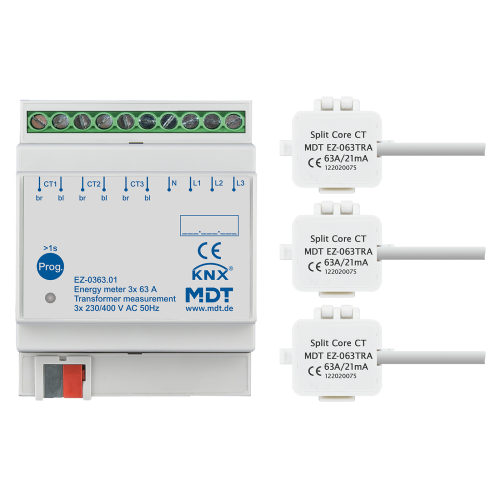

Industrial version, transformer measurement up to 63 A. 3-phase bidirectional meter for active energy.
- 3-phase bidirectional meter for active energy
- 3 single split core current transformers 63 A for easy folding installation included in the packaging
- Energy Meter for single-phase or three-phase circuits
- Measurement of the effective-/reactive and apparent power, voltage, current and power factor cos phi
- Separate metering of energy, consumed from and supplied to the grid (kWh)
- Integrated True RMS current measurement
- Current measurement range 30 mA ... 63 A
- Threshold switch (1 Byte/2 Byte/2 Byte float)
- Main and intermediate meter
- 4 mm² connection terminals
- Cable length of the current transformers: 650 mm
- Fast application download (long frame support as of ETS 5)
