As individual as you are“ is the motto of the capacitive multi-functional Glass Touch Smart with its high-resolution 6-inch TFT colour display. The elegant and individual design options of the display are impressive. Installed vertically or horizontally, the 6-inch TFT colour display can be individually customised in the ETS. Up to 64 functions can be visualised on independent levels and up to 12 statuses can be shown in standby operation.
Product features
- Multifunctional push-button with capacitive, high-resolution 6-inch TFT-colour display (1440 x 720 Pixel)
- Elegant and detailed design, combining glass and brushed aluminium
- Intuitive user interface for straightforward control of room functions
- White circumferential orientation light
- Up to 64 functions on independent levels and 12 statuses in standby
- Room functions: switching, dimming, tuneable white, HSV, RGB, RGBW, sun shading, HVAC
- Shortcut function (to a specific level)
- Comfortable room temperature controller with temperature sensor for heating and cooling operation
- Logic functions, scene control, innovative group control
- Display of status information (1 Bit) and notification (14 Byte)
- Security against unauthorised access through code lock function (1 user)
- Individual customised design according to customer requirements (Logo, Background picture, design colour)
- With anti-theft / anti-dismantling protection
- Installation in a standard switch box (EU, UK, CH, CN)
- Auxiliary power 24 ... 30 V DC
- Integrated Bus coupler, KNX Data Secure
- Installation: horizontally or vertically
- Dimensions (H x W x D): 92 x 160 x 12.5 mm
- Production in Germany, certified according to ISO 9001
- 3 year warranty

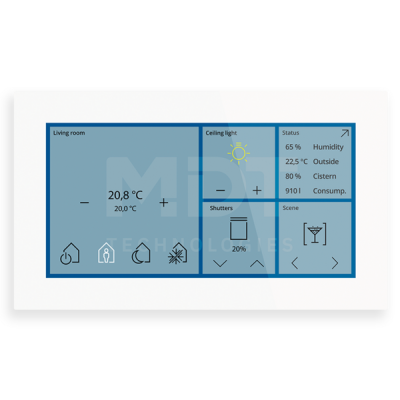

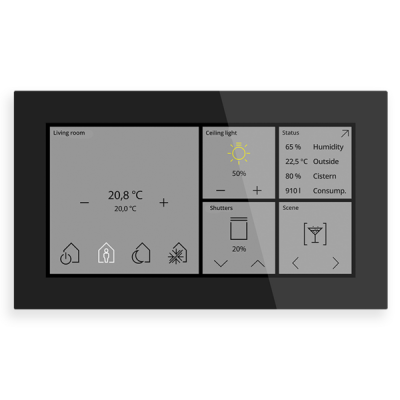

Glass Touch Smart Plus - additional features:
(BE-GTSP6TW.01S and BE-GTSP6TS.01S)
- Circumferential RGBW-background illumination to signal individual operational status, alarms and orientation light
- Integrated loudspeaker for acoustical feedback (button press, signalling of alerts)
- Security against unauthorised access through code lock function (4 users)
- 2 Binary inputs to connect potential free contacts (Mechanical Push-buttons, Switches, window contacts)
- With time switch
Technical Data
| Measuring range for temperature |
0 ... 40 °C |
| Room temperature control range |
7 ... 35 °C |
| Accuracy of temperature measurement, typical |
± 0,5 °C |
| Display |
Capacitive 6-inch TFT display |
| Circumferential background illumination |
RGBW |
| Loudspeaker |
Yes |
| Code lock function |
Yes, 4 user |
| KNX Medium |
TP-256 with long frame support |
| KNX Application |
as of ETS 5 (latest) |
| KNX Secure |
KNX Data Secure |
| Secure: maximum number of group addresses |
1200 |
| Secure: maximum number of communication partners |
320 |
| Nominal voltage KNX |
30 V DC SELV |
| Voltage range KNX |
21 ... 31 V DC SELV |
| Typical power consumption KNX bus |
< 0,15 W |
| Auxiliary voltage |
21 ... 30 V DC SELV |
| Power consumption auxiliary voltage |
< 4 W |
| Ambient operating temperature |
0 ... 45 °C |
| Humidity |
< 95 % |
| Protection classification |
IP20 |
| Dimensions (H x W x D) |
92 x 160 x 12,5 mm |
| Installation Type |
Flush-mounted |
| Installation position |
horizontal / vertical |
| Recommended installation height |
1,5 m - 1,6 m |
