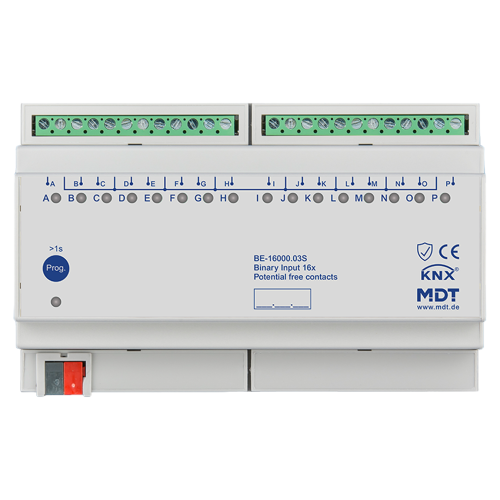

KNX Binary Input 16-channel, 8 SU MDRC, Potential free version, Secure

Version to connect potential free contacts. LED indicator for each channel, Max. cable length 100 m.

• KNX Data Secure
• To connect Push-buttons, switches, window contacts
• Virtual interface in the ETS
• Multitouch-function, sends up to 4 values on the same or different objects
• Intelligent one‑button dimming
• Innovative group control with long/extra long button press
• 4 integrated logic modules, e.g., to evaluate the inputs (closed window or send a second object)
• Evaluation of rising and falling edges
• NO- and NC operation, contact status send
• Dimmer- and shutter function for singular- and double Push-button operation
• Sending of values, forced operation
• Scenes and blocking object for each channel
• Short/Long button press with 2 objects
• Pulse and switch counter with extensive counter functions (suitable for 30 ms S0 pulse, e.g Eltako DSZ )
• Cyclic sending, sending after reset
• Internally generated 12 V contact voltage
