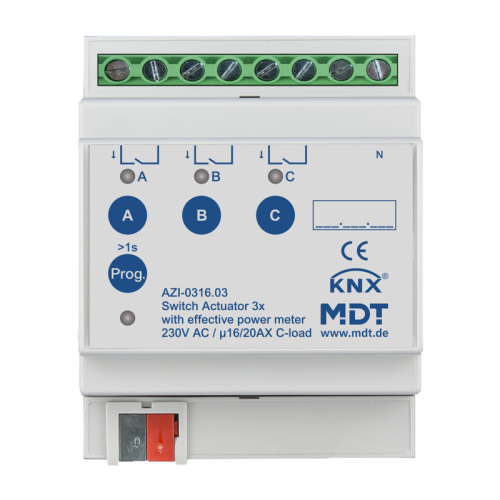

The industrial version of the MDT Switch Actuator AZI with active power measurement combines the switching capability of high inrush currents with the accuracy of active power measurement. Current measurement per channel and total current measurements are possible. The energy consumption is recorded by the integrated active power meter. The actuator is equipped with bistable relays for currents up to 16/20 A and a C-load up to 200 µF.
Product features
- Comprehensive application
- Integrated True RMS current measurement and voltage measurement
- True active power meter (Wh / kWh)
- Current measurement range 10 mA to 20 A
- Active power-, reactive power-, current- and voltage values
- Push Button for manual operation and LED indicator for each channel
- Time functions (switch-on / switch-off delay, staircase light function)
- Threshold switch function and Consumption threshold value
- Priority / forced operation with automatic release time
- Logical linking of binary data, 8 scenes per channel
- Operating hours meter
- Extended status functions (inverted, cyclic, when locked)
- Adjustable behaviour on bus voltage failure / -return
- All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals
- 3 years warranty
- Made in Germany
