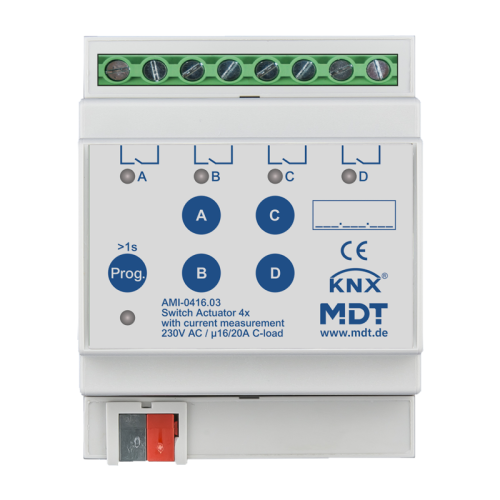

The industrial version of the MDT Switch Actuator AMI with current measurement reliably measures currents with up to 20 amperes per channel. This makes it possible, for example, to monitor load overshoot and load undershoot. High inrush currents and C-loads of up to 200 µF are no problem for the AMI.
Product features
- Comprehensive application
- Integrated True RMS current measurement (current, kWh)
- Current measurement range 10 mA to 20 A
- Integrated energy consumption meter function (Wh/kWh)
- Fast reaction <1s at Master / Slave operation
- Push Button for manual operation and LED indicator for each channel
- Time functions (switch-on / switch-off delay, staircase light function)
- Threshold switch function and Consumption threshold value
- Logical linking of binary data, 8 scenes per channel
- Operating hours meter
- Extended status functions (inverted, cyclic, when locked)
- Priority / forced operation with automatic release time
- Adjustable behaviour on bus voltage failure / -return
- All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals
- 3 years warranty
- Made in Germany
