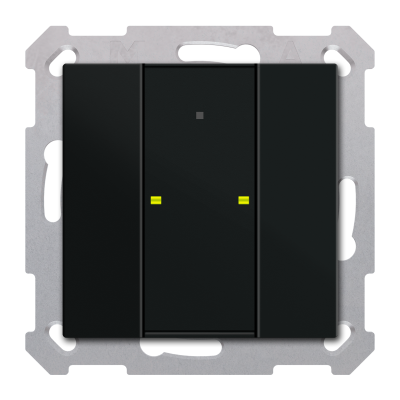

RF+ Push Button Plus 55, with actuator

Version with 2 push-buttons and LEDs for operation-/status indication and orientation light. Max. current 10 A with ohmic load, 10 A at 14 µF / 2 ECG. for operation within the EU, 868 MHz

• KNX RF+ Protocol in System Mode
• Commissioning as of ETS 5
• Suitable for 55 mm switch ranges
• The buttons can be configured as pairs or as singular buttons
• NO- and NC operation, duration of button press selectable
• Send of values, forced operation and switch commands are selectable
• Short/Long button press with 2 objects
• Singular and double Push-button operation for dimming/shutter functions
• Operation as 2 channel switch actuator or 1 channel shutter actuator
• Connection through MDT KNX RF+ Line Coupler
• Centred labelling field with cover foil for individual labelling
• As a replacement for regular two circuit switches
• For modernisation without installation of KNX Bus cable
• Power supply 230 V AC
• Installation in an installation box using the included installation frame
• 3 year warranty
