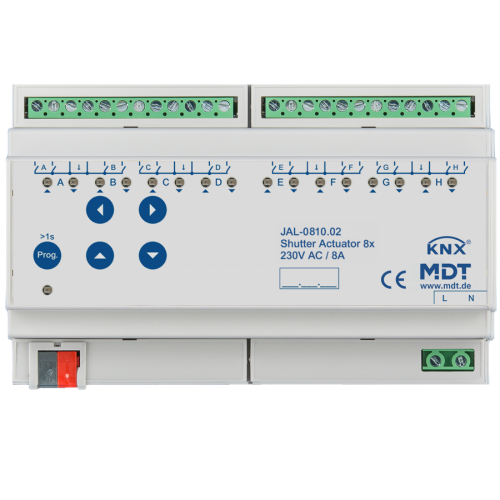

The MDT Shutter Actuator receives KNX/EIB telegrams and controls up to 8 independent shutter or sunblind drives. Each output uses two monostable relays. The MDRC Shutter Actuators can be operated manually via a push button.
- Production in Germany, certified according to ISO 9001
- Comprehensive application
- With travel time measurement (JAL-0x10M.02 only)
- Lockable manual operation and LED indicator for each channel
- Operation mode blind/shutter
- Practical ventilation function (window open/tilt
- Automatic sun shading/slat adjustment with sun
position calculation (exclusive JAL-01UP.02)
- Travel-, pause-at-change-of-direction and step time adjustable
- Separate travel time for up and down adjustable
- Tip operation for accurate positioning
- Extended 1Bit automatic positions and logical functions
- 1Byte absolute positioning for shutter and blinds
- Alarm, central- and block functions
- Behavior after alarms and locking separately configurably
- Priority/forced operation with automatic release time
- Adjustable behavior in case of bus voltage failure or return
(exclusive JAL-01UP.02 and JAL-0210.02)
- Two contacts share one L-connection (MDRC device)
- Common L-connection (flush-mounted device)
- Quick application download (long frame support with ETS 5 or higher)
- 3 years warranty
