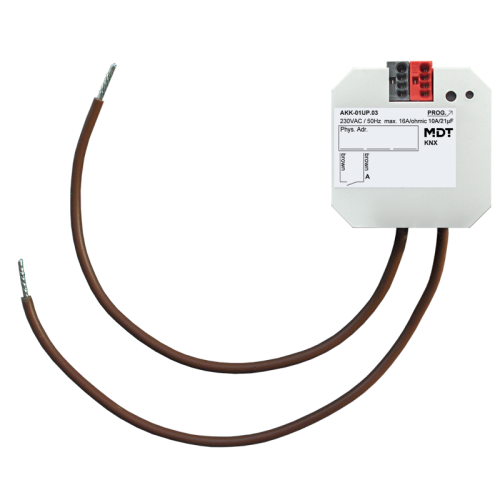

Flush mounted Switch Actuator with bistable relays
Current max. 16A with ohmic load, 70µF/10ECG
• Function extension
• NO and NC contact operation
• Time functions (switch-on/switch-off delay)
• Extensive staircase light and impluse functions
• Status response (active/passive) for each channel
• Logical linking of binary data
• Extendend scene functions for each channel
• Central switching functions and block functions
• Adjustable behaviour in case of bus voltage failure or return
• Flush mounted in socket
• Dimensions (W x H x D): 41mm x 41mm x 22mm
• Quick application download (long frame support for ETS5)
• 3 years warranty
