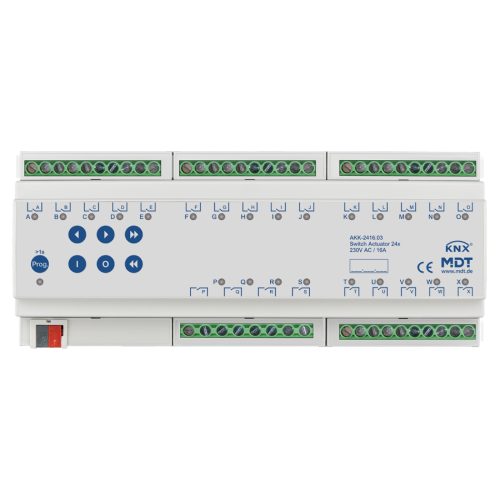

Switch Actuator 24-fold, 12SU MDRC, 16A, 230 V AC, compact, 70µ, 10ECG

The MDT Switch Actuator AKK receives KNX/EIB telegrams and switches up to 24 independent electrical loads. Each output uses a bistable relay.

Product features

• Function extension
• Lockable manual operation and LED indicator for each channel
• NO and NC contact operation
• Status response with manual operation
• Time functions (switch-on/switch-off delay)
• Extensive staircase light and impulse functions
• Status response (active/passive) for each channel
• Logical linking of binary data
• Extendend scene functions for each channel
• Central switching functions and blocking for forced operation
• Adjustable behavior in case of bus voltage failure/return
• 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases
• Common supply phase (AKK-02/0416.03)
• Separate L-connections (AKK-08/16/2416.03)
• Power supply via KNX bus
• Quick application download (long frame support with ETS 5 or higher)
• Production in Germany, certified according to ISO 9001
• 3 year warranty
