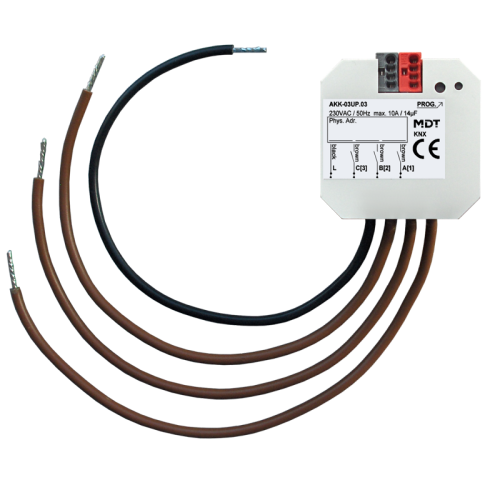

Flush mounted Switch Actuator with monostable relays
Current max. 10A with ohmic load, 10A with 14µF/2ECG
Fan coil mode:
• Control of 3-speed fans/ventilator convectors
• Outputs are locked against each other
• Direct operation by three 1Bit objects or a single 1Bit object (+/-)
• Automatic operation by 1Byte control value (0-100%)
• Suitable for 2-pipe/4-pipe systems
• Output objects to control valves for heating/cooling
• Day/Night function to limit fan speed at night
• Emergency operation if actuating variable fails
Switch Actuator mode:
• NO and NC contact operation
• Time functions (switch-on/switch-off delay)
• Staircase light function with adjustable warning time
• Status response (active/passive) for each channel
• Logical linking of binary data, 8 scenes per channel
• Central switching functions and block functions
• Adjustable behaviour in case of bus voltage failure or return
• Flush mounted in socket
• Dimensions (W x H x D): 41mm x 41mm x 22mm
• Quick application download (long frame support for ETS5)
• 3 years warranty
