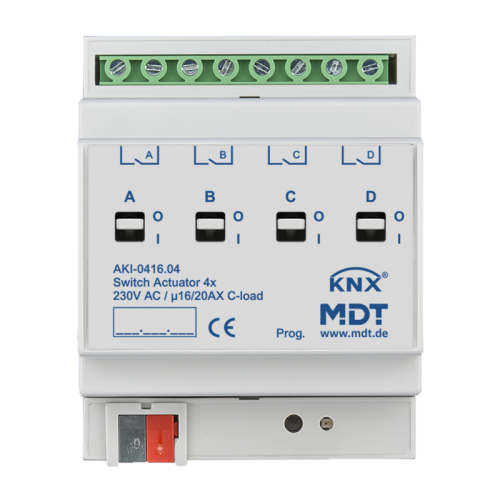

The MDT Switch Actuator receives KNX/EIB telegrams and switches up to 4 independent electrical loads. Each output uses a bistable relay, with mechanical manual operation for direct actuation of the relay contact.
- Production in Germany, certified according to ISO 9001
- Comprehensive function extension
- Mechanical manual operation for direct actuation
of the relay contact, status visible
- NO and NC contact operation
- Status response by manual operation
- Time functions (switch-on/switch-off delay)
- Extensive staircase light and impulse functions
- Extended logical and scene functions for each channel
- Extended status functions (inverted, cyclic, at block)
- Treshold switch (Byte/2Byte/2Byte float)
- Hour meter for switching
- Priority/forced operation with automatic release time
- 4mm² / 2x2,5mm² screw terminals. Separate supply phases
- Power supply via KNX bus
- Quick application download (long frame support for ETS5)
- 3 years warranty
