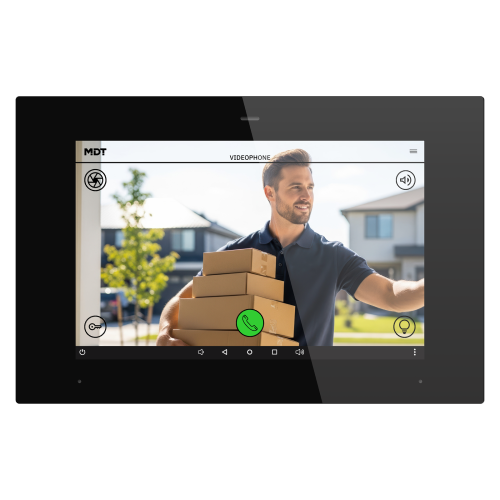

The VisuControl Plus touch panel with high-resolution 8-inch glass display enables intuitive visualisation and control of building functions such as lighting, shading, climate and scenes. With integrated SIP functionality, IP camera connectivity, logic functions and remote access, it offers comprehensive smart building capabilities. With KNX Data Secure.
Product functions:
- High-resolution capacitive glass touch display (1280 x 800 pixels)
- Visualisation and operation of lighting, shading, room temperature, status, scenes, multimedia, weather data and more
- Up to 500 elements can be visualised
- With speaker and microphone for SIP door communication functions (Requires VoIP server)
-
Daily-/weekly-/astro switch function (125 channels each with 10 switching times)
- Notifications for alarms, warnings and information (via text and sound)
- Integration of IP cameras
- Remote access via MDT VisuControlPlus app (Android / iOS / Windows)
- Digital I/O for doorbell button and signalling
- With brightness and proximity sensor
- User management with PIN codes for up to 10 users
- Bookmark page for frequently used functions
- Automatic central commands per room (lighting / shading / multimedia)
- Cloud connection, backup and restore via USB
- Cleaning function for display maintenance
- Logic functions, scenes and presence simulation
- Integrated Bus coupler, KNX Data Secure
- With mounting adapter for standard installation box – horizontal or vertical
- Dimensions (H x W x D): 153 x 233 x 16 mm
- 3 year warranty
Technical Data
| KNX |
Nominal voltage KNX |
30 V DC SELV |
|
Voltage range KNX |
21 … 31 V DC SELV |
| Performance data |
Supply voltage U |
12 ... 32 V DC |
|
Power consumption |
< 16 W |
