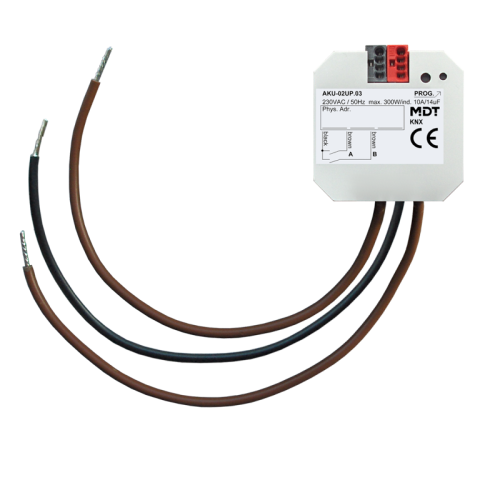

Universal Actuator 2-fold, flush mounted, 10A, 230VAC, 14µF, 2ECG

Product features

• Can be used as a Switch Actuator 2-fold or Shutter Actuator 1-fold
• Heating control with PWM 0-100%
• Automatic sun shading/slat adjustment with sun position calculation
• Practical ventilation function (window open/tilt)
• Time functions (switch-on/switch-off delay, staircase light function)
• Status response (active/passive) for each channel
• Logical linking of binary data, 8 scenes per channel
• Central switching functions and blocking for forced operation
• Operation mode blind/shutter adjustable
• Travel-, pause at change of direction, and step time adjustable
• 1Bit automatic function and sun protection
• 8Bit positioning for shutter and blinds
• Adjustable behavior in case of bus voltage failure or return
• Dimensions (W x H x D): 41 mm x 41 mm x 22 mm
• Quick application download (long frame support with ETS 5 or higher)
• Production in Germany, certified according to ISO 9001
• 3 years warranty
