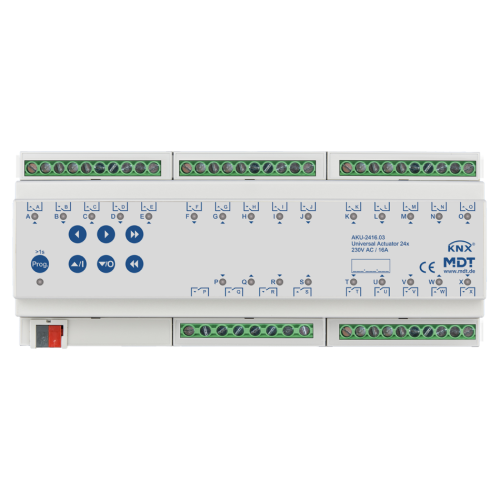

Universal Actuator 24-fold, 12SU MDRC, 16A, 230VAC, 100µF, 15ECG

Product features

• Comprehensive function extension
• Can be used as a Switch Actuator (max. 24-fold) or Shutter Actuator (max. 12-fold)
• Mixed use of Switch and Shutter Actuators possible
• Heating control with PWM 0-100%
• Push Button and LED indicator for each channel
• Automatic sun shading/slat adjustment with sun position calculation
• Practical ventilation function (window open/tilt)
• Time functions (switch-on/switch-off delay, staircase light function)
• Status response (active/passive) for each channel
• Logical linking of binary data, 8 scenes per channel
• Central switching functions and blocking for forced operation
• Operation mode blind/shutter adjustable
• Travel-, pause at change of direction, and step time adjustable
• 1Bit automatic function and sun protection
• 8Bit positioning for shutter and blinds
• Ventilation function (window opened/tilt)
• Adjustable behavior in case of bus voltage failure or return
• 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases
• Quick application download (long frame support with ETS 5 or higher)
• Production in Germany, certified according to ISO 9001
• 3 year warranty
