4 x 225 W, HV-LED lamps typ. 4 x 1 ... 35 W (leading edge phase control), 4 x 1 ... 200 W (trailing edge phase control), 1x855 W
Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
Power consumption KNX: 15mA
5-year product guarantee

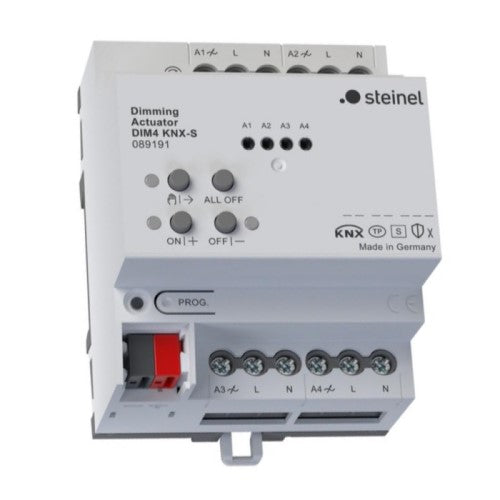

Product database: Dimming Actuator DIM4 KNX-S
Technical data
Nominal voltage: AC 110 ... 230 V ~
Mains frequency: 50/60 Hz
Power loss: max. 7 W
Standby power: approx. 0.16 W per channel
Connected load: 230 V per output
Lamp loads Phase control
Nominal voltage: AC 110 ... 230 V ~
Incandescent / HV halogen lamps: 20 ... 225 W
Inductive transformers: 20 ... 210 VA
Inductive transformers w. LV-LED: 20 ... 100 VA
Electronic transformers: 20 ... 210 W
Electronic transformers with LV LED: 2 0 ... 100 W
HV LED lamps dimmable: type. 1 ... 35 W
Compact fluorescent lamps dimmable: type. 20 ... 80 W
Phase section
Incandescent / HV halogen lamps: 20 ... 225 W
Electronic transformers: 20 ... 225 W
Electronic transformers with LV LED: 20 ... 200 W
HV LED lamps dimmable: typ. 1 ... 200 W
Compact fluorescent lamps dimmable: typ. 20 ... 150 W
