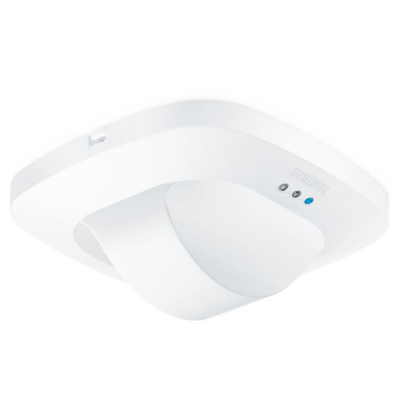

Twice as vigilant! High-frequency corridor sensor Presence Control PRO Dual HF KNX for indoors, ideal for passageways and long corridors, installation height up to 3.5 m, with digital BUS interface for controlling 4 lighting channels and HVAC, DUAL-HF technology that senses movement in two directions for radial detection up to 20 m, detection regardless of temperature, HF-sensor technology also senses movement through glass, wood and stud walls, switches light 'ON' almost instantly.
| General |

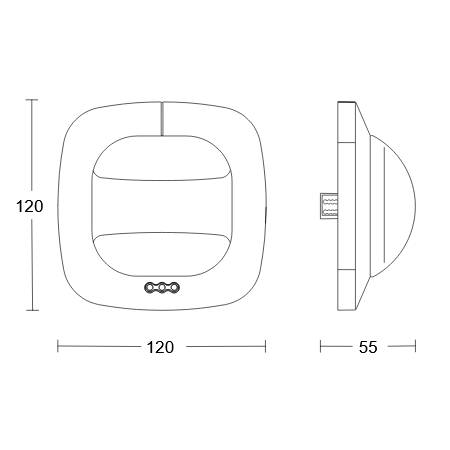

| Dimensions (L x W x H) |
73 x 120 x 120 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
corridor / aisle, Indoors |
| Sensor technology |
| Technology, sensors |
High frequency, Light sensor |
| Mounting height |
2,50 – 3,5 m |
| Mounting height max. |
3,50 m |
| Optimum mounting height |
2,8 m |
| HF-system |
5,8 GHz
|
| Detection |
also through glass, wood and stud walls |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
Yes |
| Mechanical scalability |
No |

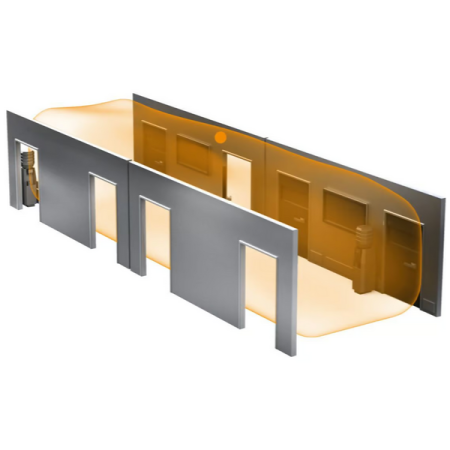

| Reach, radial |
20 x 3 m (60 m²) |
| Reach, tangential |
20 x 3 m (60 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
140 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
No |
