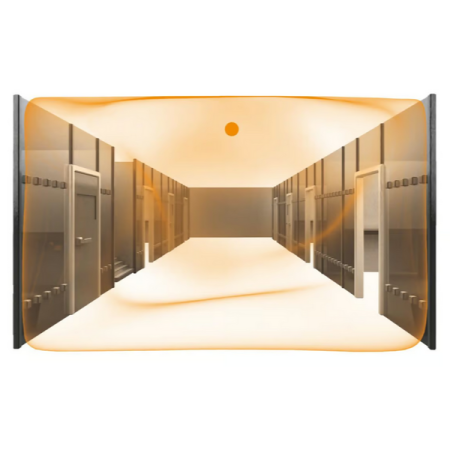

Watches over the entire corridor. And can see around corners. Dual US KNX ultrasonic motion detector, ideal for corridors and passageways. Reliable detection within 18 m, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, with digital BUS interface for controlling 4 lighting channels and HVAC.
| General |
| Dimensions (L x W x H) |
70 x 120 x 120 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
corridor / aisle, Indoors |
| Sensor technology |
| Technology, sensors |
Photo-cell controller, Ultrasonic |
| Mounting height |
2,50 – 3,5 m |
| Mounting height max. |
3,50 m |
| Optimum mounting height |
2,8 m |
| Ultrasonic technology
|
40 kHz
|
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
Yes |
| Mechanical scalability |
No |
| Reach, radial |
18 x 3 m (54 m²) |
| Reach, tangential |
18 x 3 m (54 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
180 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
