The best of both worlds. Combined in one detector. Ultrasonic presence detector DualTech KNX, ideal for offices, conference rooms and class rooms. 36 sq.m. presence zone, ultrasonic technology provides reliable detection behind objects regardless of temperature, additional detection capability with PIR technology, electronic adjustment for ultrasonic reach, with digital BUS interface for controlling 4 lighting channels and HVAC.
| General |

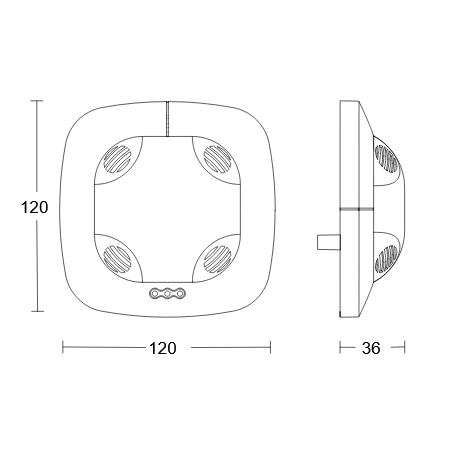

| Dimensions (L x W x H) |
65 x 120 x 120 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
classroom, one-person office, open-plan office, conference room / meeting room, duty room, recreation room, Indoors
|
| Sensor technology |
| Technology, sensors |
Ultrasonic, passive infrared, Light sensor |
| Mounting height |
2,50 – 3,5 m |
| Mounting height max. |
3,50 m |
| Optimum mounting height |
2,8 m |
| Ultrasonic technology
|
40 kHz
|
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
Yes |
| Mechanical scalability |
No |
| Reach, radial |
Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²) |
| Reach, tangential |
Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²) |

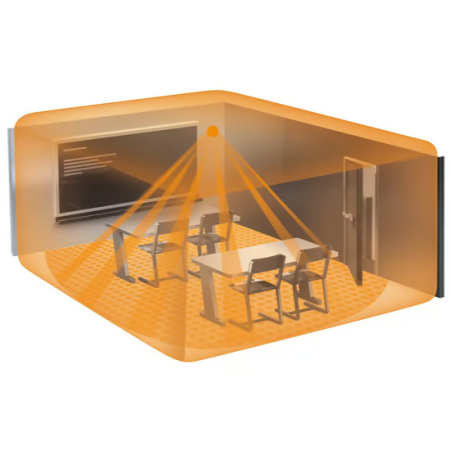

| Reach, presence |
Ultrasonic: Ultraschall: Ø 6 m (Ultraschall: 28 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
180 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
