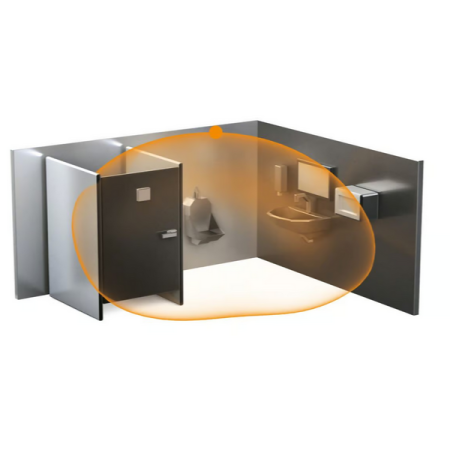

Doesn't miss a thing. HF-presence detector Presence Control PRO HF 360 KNX for indoors, ideal for WCs with toilet cubicles, changing rooms, stairwells, multi-storey car parks, kitchens, installation height up to 3.5 m, with digital BUS interface for controlling 4 lighting channels and HVAC, 1 – 12 m reach, reach is electronically adjustable and can be limited in two directions, detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls.
| General |

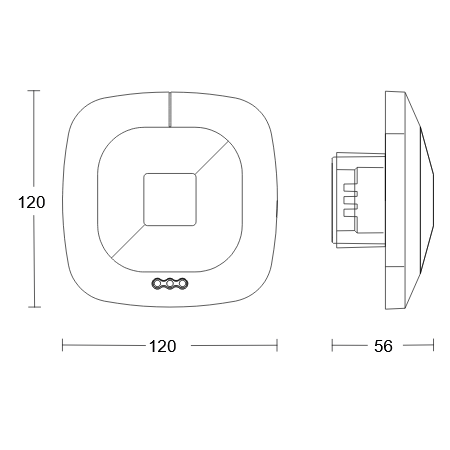

| Dimensions (L x W x H) |
55 x 120 x 120 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors |
| Sensor technology |
| Technology, sensors |
Photo-cell controller, High frequency |
| Mounting height |
2,50 – 3,5 m |
| Mounting height max. |
3,50 m |
| Optimum mounting height |
2,8 m |
| HF-system |
5,8 GHz |
| Detection |
also through glass, wood and stud walls |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
Yes |
| Electronic scalability |
Yes |
| Mechanical scalability |
No |
| Reach, radial |
Ø 12 m (113 m²) |
| Reach, tangential |
Ø 12 m (113 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
140 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
