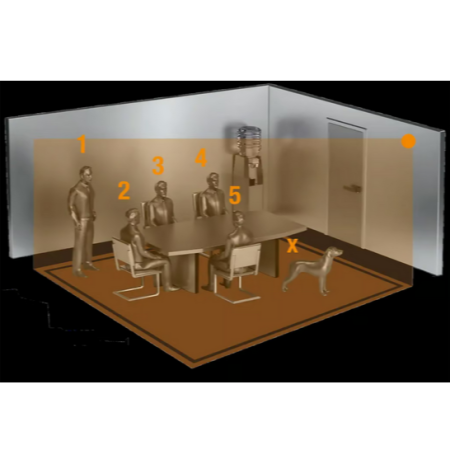

Detects persons in 5 individually adjustable zones! As the world's only optical sensor of its kind, it detects and counts people sitting and standing in up to five precisely definable detection zones. 110° angle of coverage with a reach of up to 10 m from a maximum mounting height of 6 m. Integrated, state-of-the-art imaging compares 150,000 positive images and 7 million negative images in real time. Ideal for managing meeting rooms, because it identifies actual room use, or for detecting unused office workstations for flexible desk management. KNX interface with temperature and humidity measurement, available from STEINEL Systems partners.
| General |

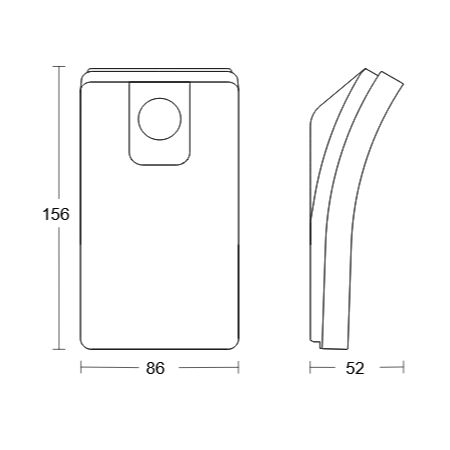

| Dimensions (L x W x H) |
52 x 86 x 156 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Web-Interface |
| With remote control |
No |
| Type |
Other |
| Application, place |
Indoors |
| Application, room |
classroom, lecture hall, open-plan office, production facilities, conference room / meeting room, recreation room, Indoors |
| Sensor technology |
| Technology, sensors |
Optical sensor, Air humidity, Temperature, Light sensor |
| Mounting height |
2,30 – 6,00 m |
| Mounting height max. |
6,00 m |
| Optimum mounting height |
2,8 m |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
Yes |
| Electronic scalability |
Yes |
| Mechanical scalability |
No |
| Reach, radial |
r = 10 m (96 m²) |
| Reach, tangential |
r = 10 m (96 m²) |
| Reach, presence |
r = 10 m (96 m²) |
| Detection angle |
110 ° |
| Angle of aperture |
110 ° |
| Twilight setting |
2 – 2000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
No |
| Constant-lighting control |
Yes |
