The new benchmark. High-precision IR 180 infrared presence sensor with a reach of 20 m. Ideal for new builds. 180° angle of coverage. Fast and easy 3-wire installation. Attractive design. Integrated button for manual override. The KNX version also provides temperature and air humidity readings.
| General |

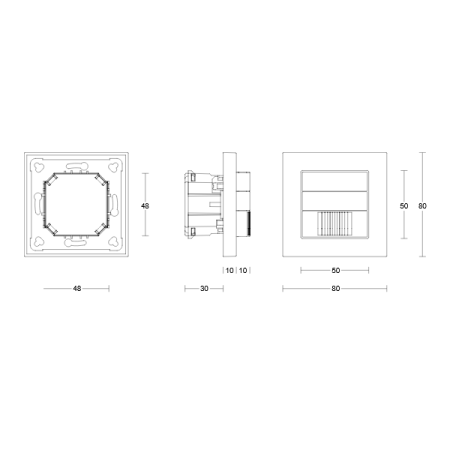

| Dimensions (L x W x H) |
50 x 80 x 80 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
Yes |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
one-person office, corridor / aisle, function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors |
| Sensor technology |
| Technology, sensors |
Passive infrared, Light sensor, Temperature, Air humidity |
| Mounting height |
1 – 1,2 m |
| Mounting height max. |
1,20 m |
| Optimum mounting height |
1,2 m |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
Yes |
| Mechanical scalability |
No |
| Reach, radial |
r = 4 m (25 m²) |
| Reach, tangential |
r = 12 m (226 m²) |
| Reach, presence |
r = 4 m (25 m²) |

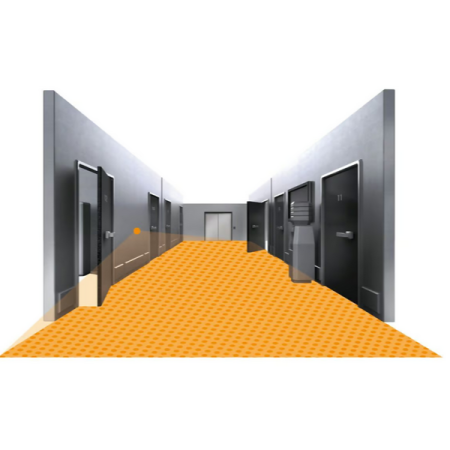

| Detection angle |
180 ° |
| Angle of aperture |
90 ° |
| Twilight setting |
2 – 1000 lx |
| Time setting |
60 s – 255 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
