Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD KNX for indoors, ideal for medium to large-size offices, conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, with digital BUS interface for controlling 4 lighting channels and HVAC, 4800 switching zones for the ultimate in detection quality, presence detection over a true 64 m2, square detection zone, mechanically scalable.
| General |

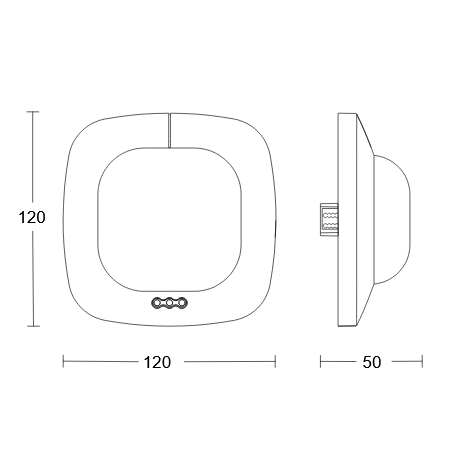

| Dimensions (L x W x H) |
69 x 120 x 120 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
classroom, lecture hall, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, duty room, recreation room, changing room, sports hall, reception / lobby, multi-storey / underground car park, Indoors |
| Sensor technology |
| Technology, sensors |
passive infrared, Light sensor |
| Mounting height |
2,50 – 10,00 m |
| Mounting height max. |
10,00 m |
| Optimum mounting height |
2,8 m |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
No |
| Mechanical scalability |
Yes |

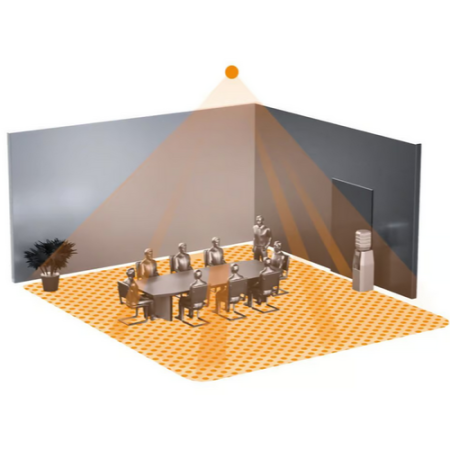

| Reach, radial |
8 x 8 m (64 m²) |
| Reach, tangential |
20 x 20 m (400 m²) |
| Reach, presence |
8 x 8 m (64 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
160 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
