A head for heights. Powerful reach. Reliable. IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m.
| General |
| Dimensions (L x W x H) |
65 x 95 x 95 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote
|
| With remote control |
No |
| Type |
Motion detectors |
| Application, place |
Indoors |
| Application, room |
high-bay warehouse, sports hall, Indoors
|
| Sensor technology |
| Technology, sensors |
passive infrared, Light sensor |
| Mounting height |
4,00 – 14,00 m |
| Mounting height max. |
14,00 m |
| Optimum mounting height |
12 m |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
Yes |
| Electronic scalability |
No |
| Mechanical scalability |
No |

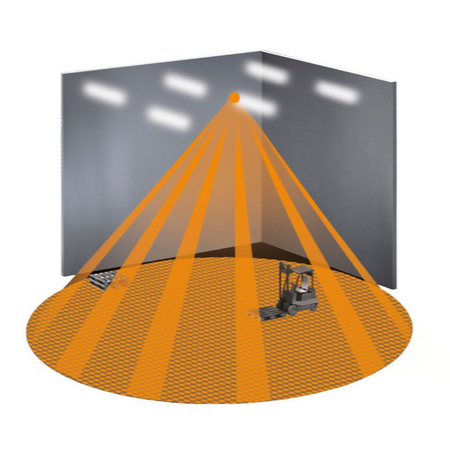

| Reach, radial |
Ø 14 m (154 m²) |
| Reach, tangential |
Ø 36 m (1018 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
180 ° |
| Twilight setting |
2 – 1000 lx |
| Time setting |
5 s – 15 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
