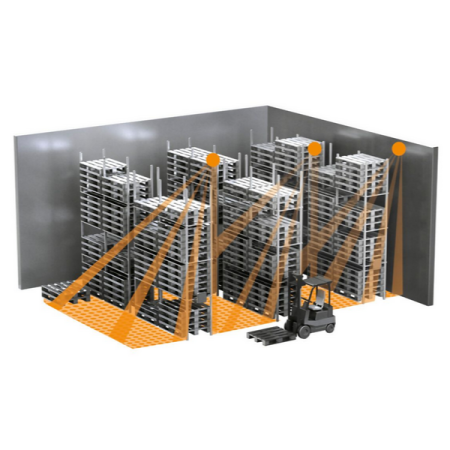

Surveillance on the highest level. Infrared motion detector IS 345 MX Highbay for indoors, ideal for large heights in depots, high-bay warehouses, machine shops, check-in areas and departure lounges, installation height 14 m, detection zone 30 x 4 m (radial), large terminal compartment for easy installation. Available as square surface-mounted and concealed version.
| General |
| Dimensions (L x W x H) |
65 x 95 x 95 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Motion detectors |
| Application, place |
Indoors |
| Application, room |
high-bay warehouse, Indoors |
| Sensor technology |
| Technology, sensors |
passive infrared, Light sensor |
| Mounting height |
4,00 – 16,00 m |
| Mounting height max. |
16,00 m |
| Optimum mounting height |
12 m |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
Yes |
| Electronic scalability |
No |
| Mechanical scalability |
No |
| Reach, radial |
30 x 4 m (120 m²) |
| Reach, tangential |
30 x 4 m (120 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
90 ° |
| Twilight setting |
2 – 1000 lx |
| Time setting |
5 s – 15 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
