Detects whether the air is pure and clean.
The most precise presence detector ever becomes the ultimate sensory organ. Light level, ambient temperature, humidity, air pressure, volatile organic compounds (VOC) and CO2 measurements are necessary for the true detection of people. Information that will help to advance the digitisation of building automation on a lasting basis. In this combination and for the first time, the True Presence® Multisensor Aerosol KNX is also capable of identifying and displaying a potential risk of infection as a communication object for KNX. An investment in building intelligence, in people's sense of well-being and in running the building cost-efficiently. The best comes from above – precise, digital information for modern building management.
| General | |

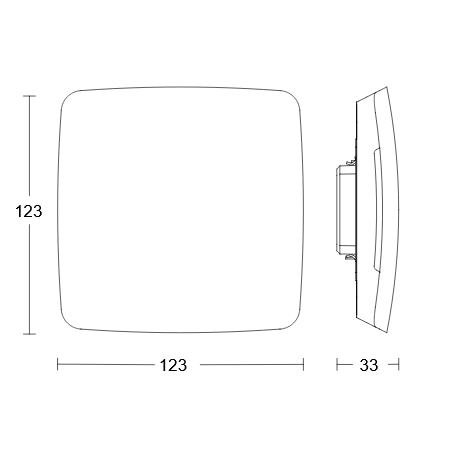

| Dimensions (L x W x H) | 123 x 123 x 33 mm |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | ETS software, Bluetooth, Bus |
| With remote control | No |
| Type | Presence detector |
| Application, place | Indoors |
| Application, room | classroom, conference room / meeting room, one-person office, recreation room, duty room, open-plan office, hotel room, lecture hall, kitchenette, Indoors |
| Sensor technology | |
| Technology, sensors | CO2, High frequency, Air pressure, Air humidity, Temperature, VOC, Light sensor |
| Mounting height | 2 – 12 m |
| Mounting height max. | 12,00 m |
| Optimum mounting height | 2,8 m |
| Montagehöhe max. True Presence Erfassung | 4,00 m |
| HF-system | 7,2 GHz |
| Detection | also through glass, wood and stud walls |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | Ø 15 m (177 m²) |
| Reach, tangential | Ø 15 m (177 m²) |
| Reach, presence | Ø 15 m (177 m²) |
| True Presence reach | Ø 9 m (64 m²) |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Twilight setting | 2 – 1000 lx |
| Time setting | 30 s – 1092 Min. |
| Basic light level function | Yes |
| Main light adjustable | 0 - 100 % |
| Twilight setting TEACH | Yes |
| Constant-lighting control | Yes |
