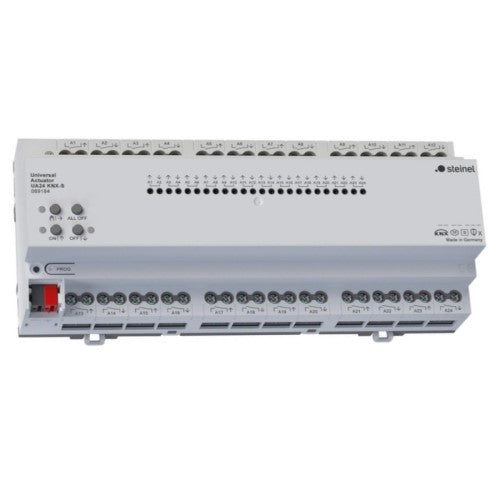

UA24 KNX-S

• Switching electrical loads with potential-free contacts
• Switching electrically operated blinds, blinds, awnings and similar hangings
• Power consumption KNX: 4 to 24mA
• 5-year product guarantee
• Product database: Universal Actuator UA24 KNX-S

Technical data

• Ambient temperature: .5 ... +45 °C
• Storage/transport temperature: .25 ... +70 °C
• KNX
  • KNX Medium: TP 256
  • Nominal voltage KNX: DC 21 ... 32 V SELV
• Outputs
  • Switching voltage: AC 250 V ~
  • Switching current AC1 (cos > 0,8): 16 A
  • Fluorescent lamps: 16 AX
• Fluorescent lamps:
  • Ohmic load: 3000 W
  • Capacitive load: 16 A / 140 ìF
  • Motors: 1380 VA
  • Inrush current 200 ìs: max. 800 A
  • On Switching current 20 ms: max. 165 A
• Lamp loads 230 V
  • Incandescent lamps: 2300 W
  • HV halogen lamps: 2500 W
  • HV LED lamps: max. 400 W
• LV halogen lamps with
  • electronic transformers: 1500 W
  • inductive transformers: 1200 VA
