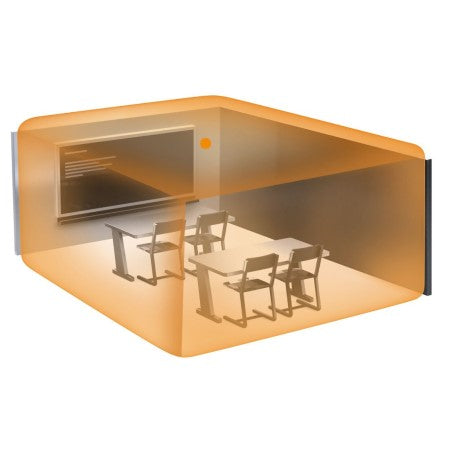

Detects without obstructions. 360° ultrasonic presence detector US 360, ideal for offices, conference rooms, store rooms and class rooms. 36 sq.m. presence detection zone, immune to obstacles, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, with digital BUS interface for controlling 4 lighting channels and HVAC.
| General |

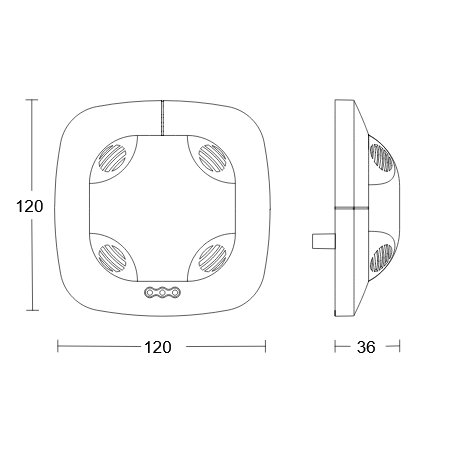

| Dimensions (L x W x H) |
66 x 120 x 120 mm |
| With motion detector |
Yes |
| Manufacturer's Warranty |
5 years |
| Settings via |
ETS software, Remote control, Bus, Smart Remote |
| With remote control |
No |
| Type |
Presence detector |
| Application, place |
Indoors |
| Application, room |
classroom, one-person office, open-plan office, conference room / meeting room, duty room, recreation room, function room / ancillary room, stairwell, WC / washroom, Indoors |
| Sensor technology |
| Technology, sensors |
High frequency, Photo-cell controller |
| Mounting height |
2,50 – 2,8 m |
| Mounting height max. |
2,80 m |
| Optimum mounting height |
3,5 m |
| Montagehöhe max. True Presence Erfassung |
4,00 m |
| Ultrasonic technology |
40 kHz |
| Sneak-by guard |
Yes |
| Capability of masking out individual segments |
No |
| Electronic scalability |
Yes |
| Mechanical scalability |
No |
| Reach, radial |
Ø 10 m (79 m²) |
| Reach, tangential |
Ø 6 m (28 m²) |
| Reach, presence |
Ø 6 m (28 m²) |
| Detection angle |
360 ° |
| Angle of aperture |
180 ° |
| Twilight setting |
10 – 1000 lx |
| Time setting |
10 s – 1092 Min. |
| Basic light level function |
Yes |
| Main light adjustable |
0 - 100 % |
| Twilight setting TEACH |
Yes |
| Constant-lighting control |
Yes |
