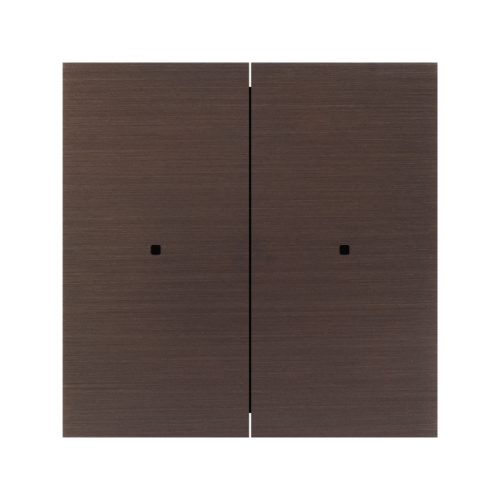

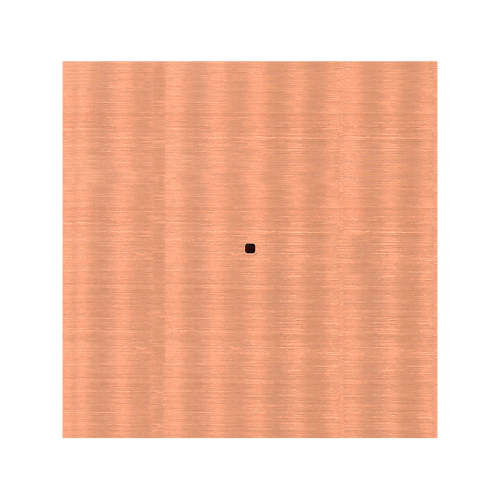

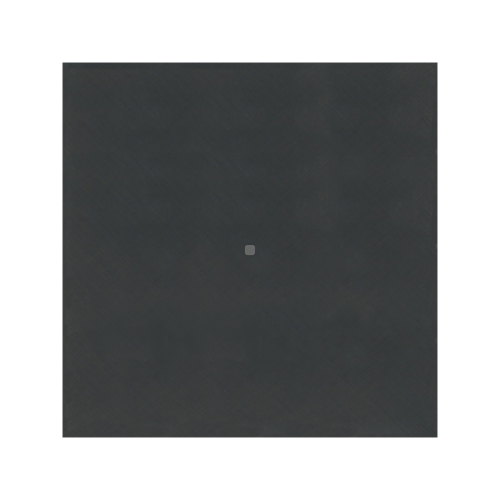

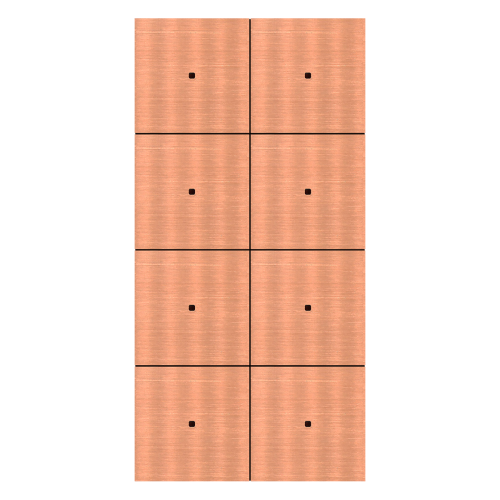

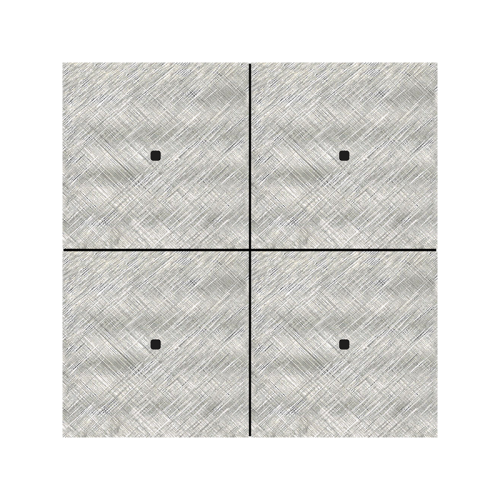

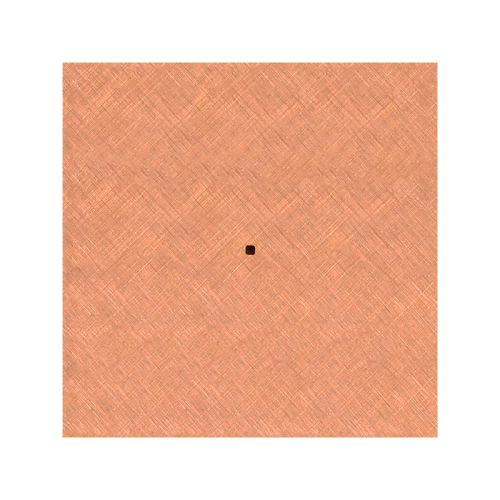

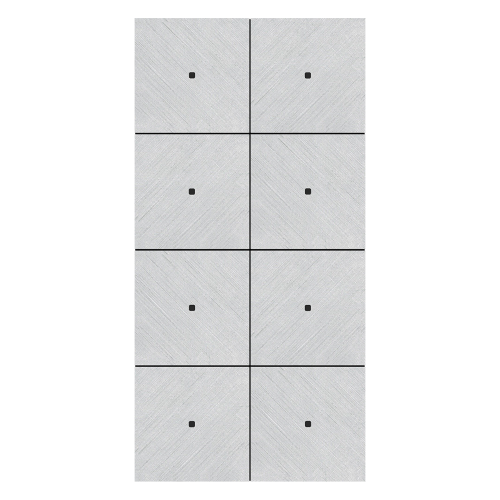

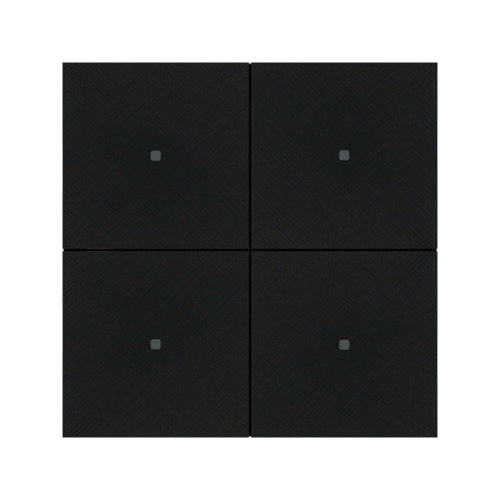

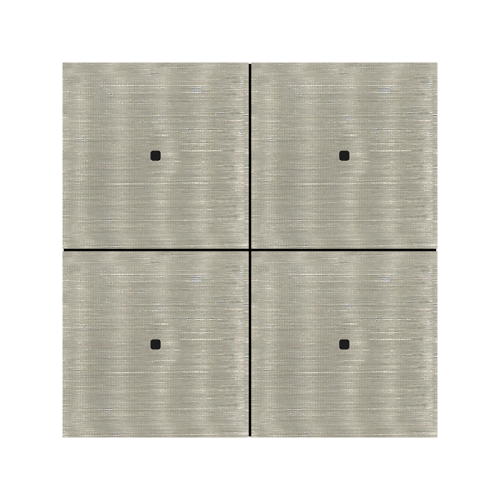

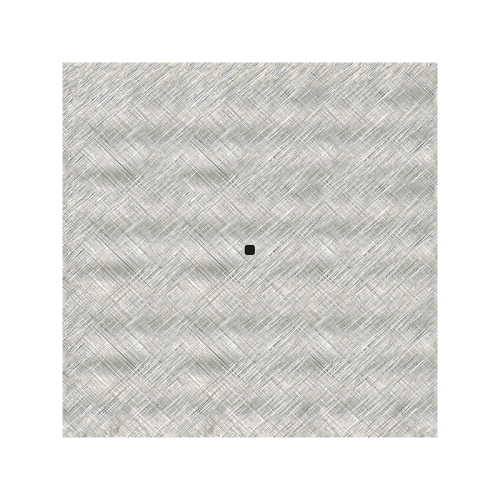

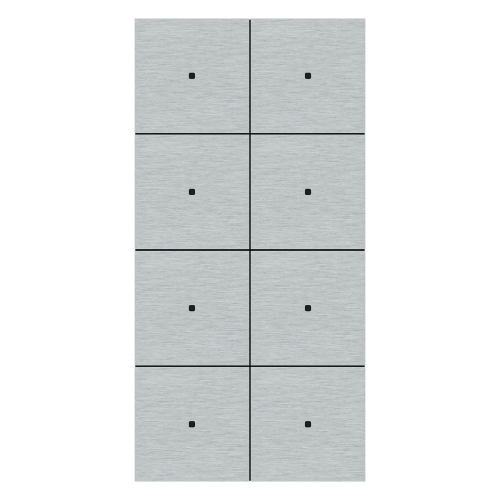

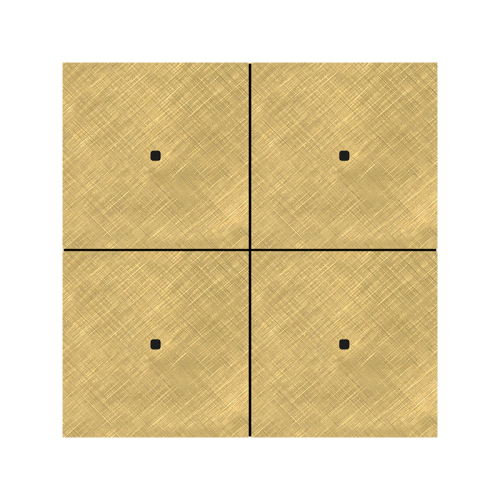

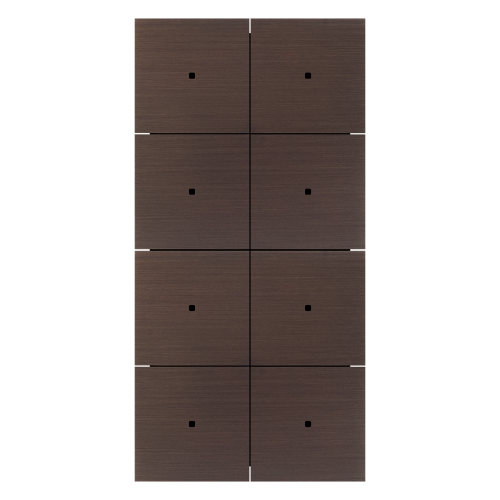

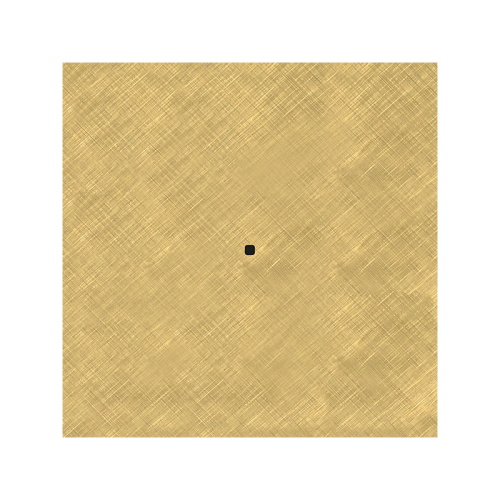

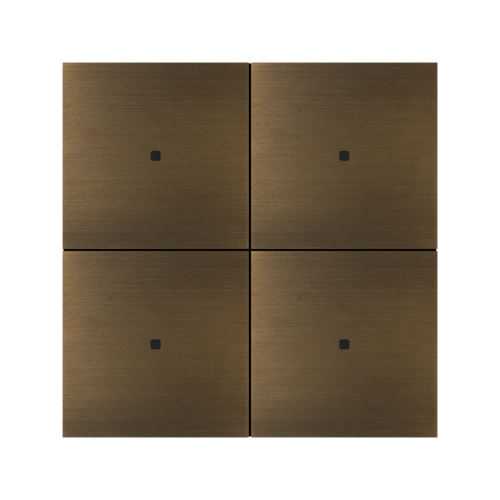

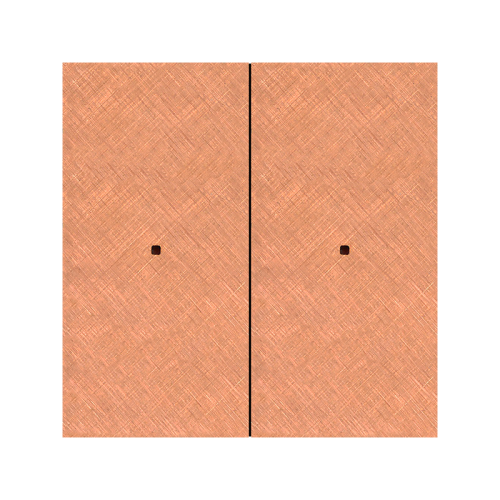

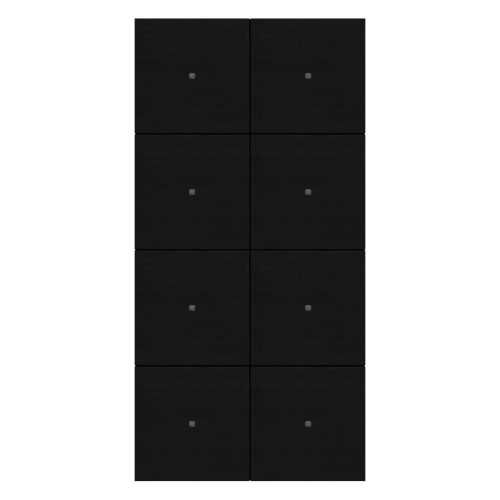

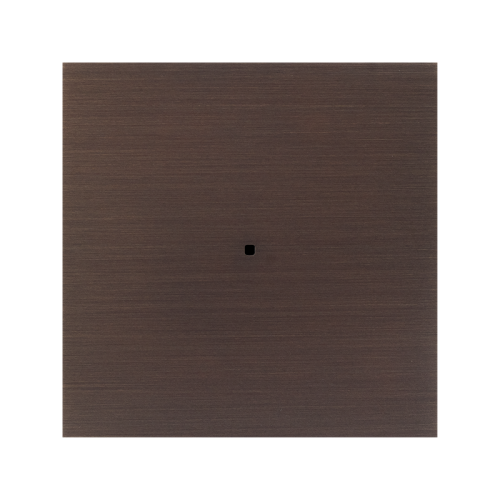

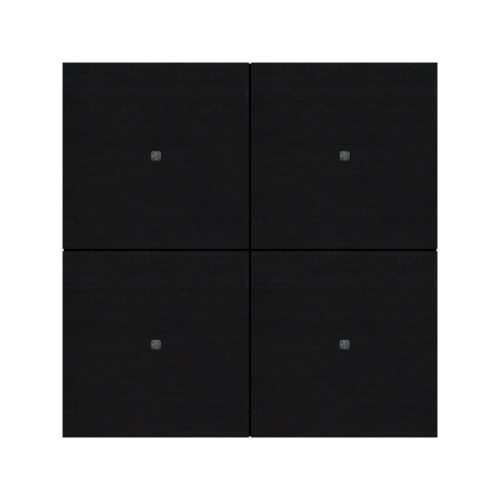

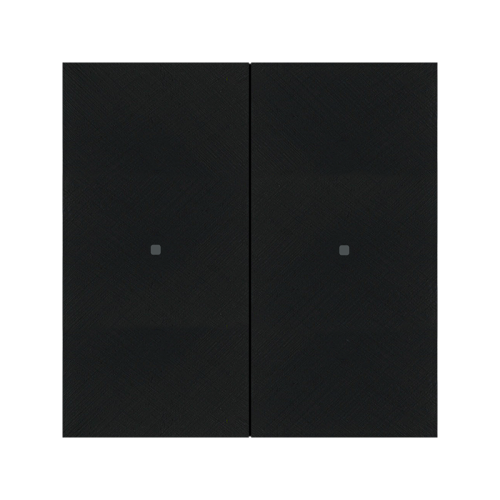

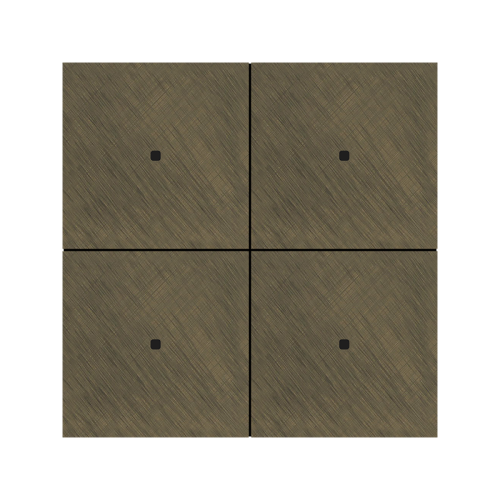

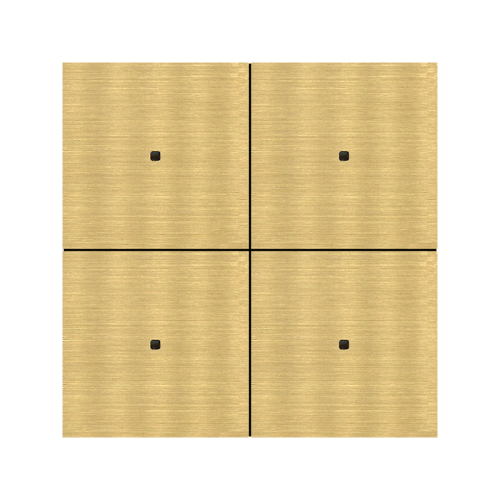

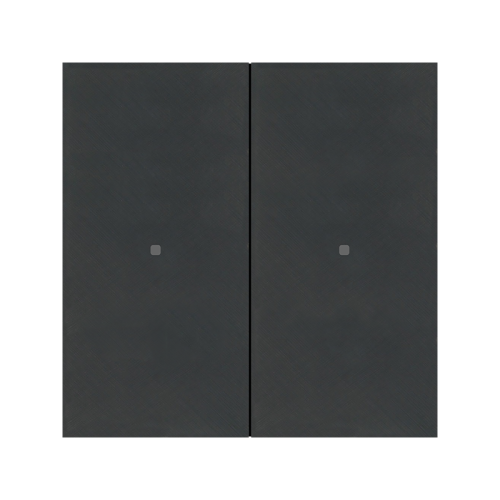

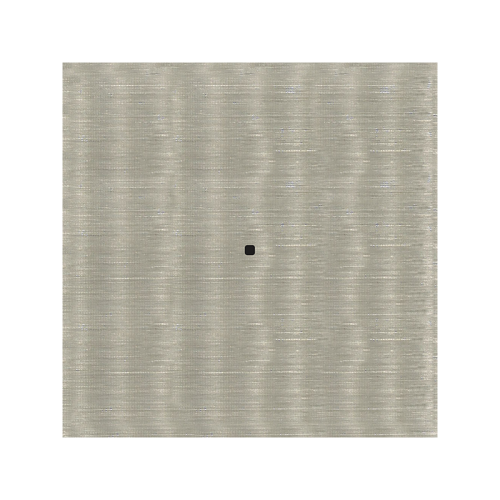

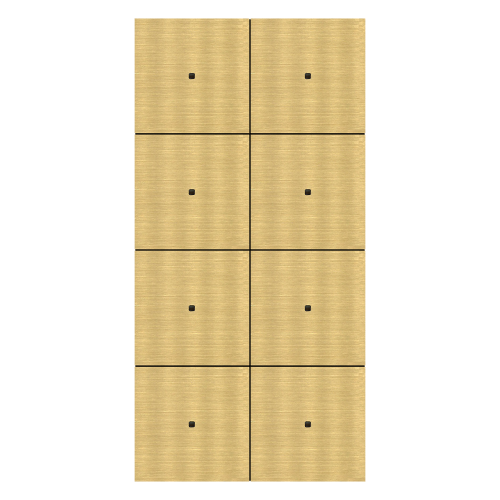

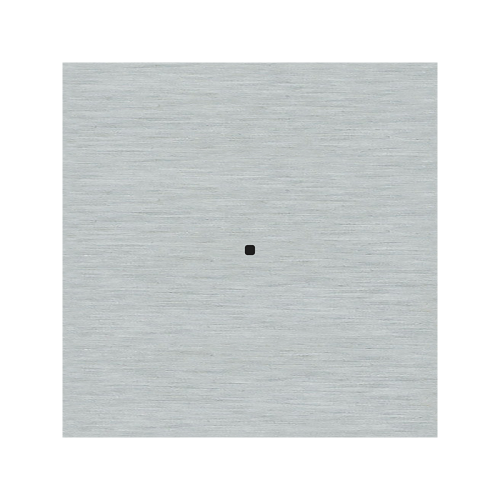

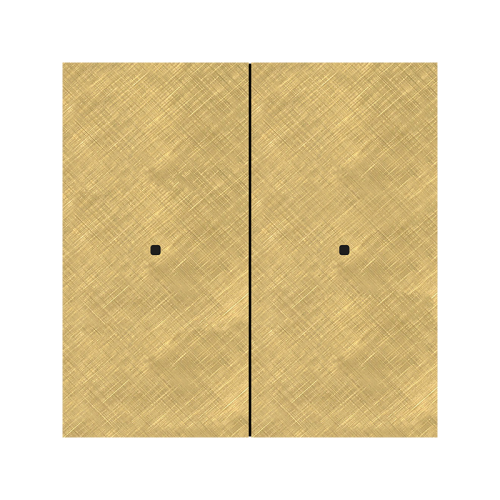

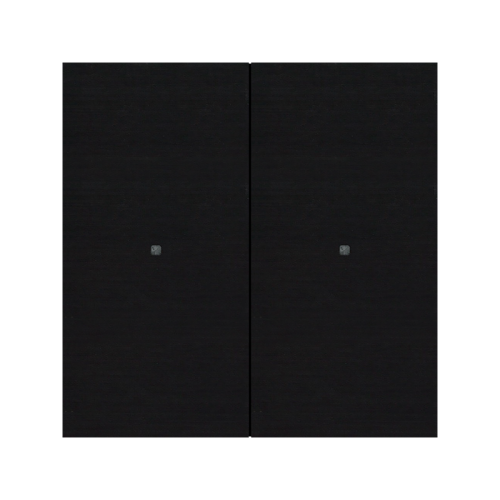

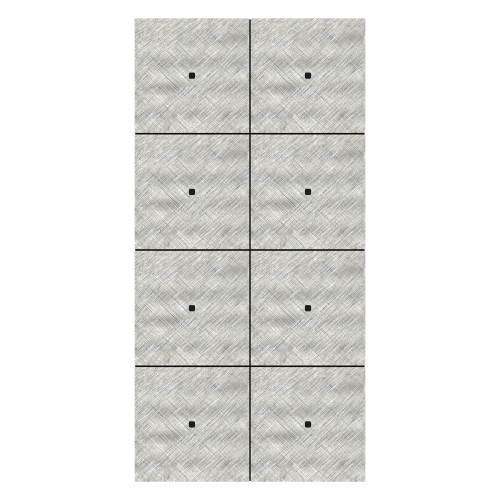

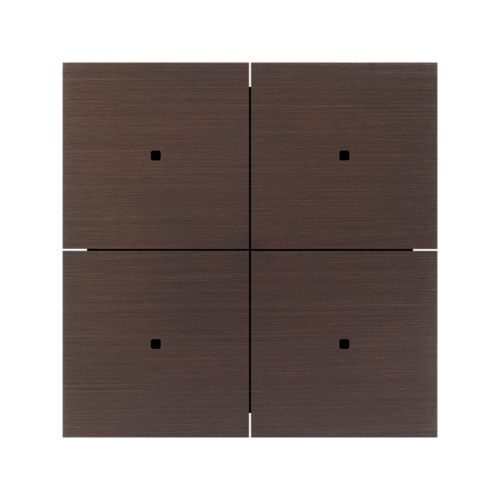

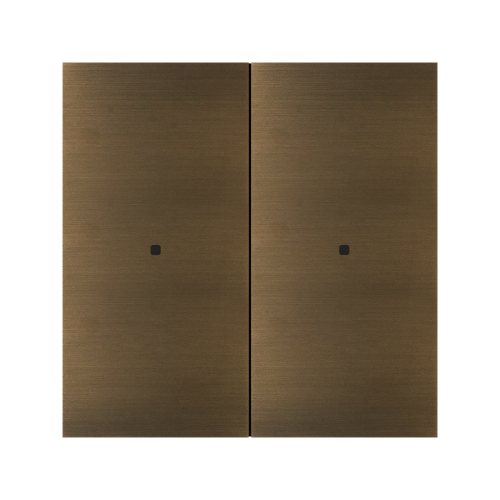

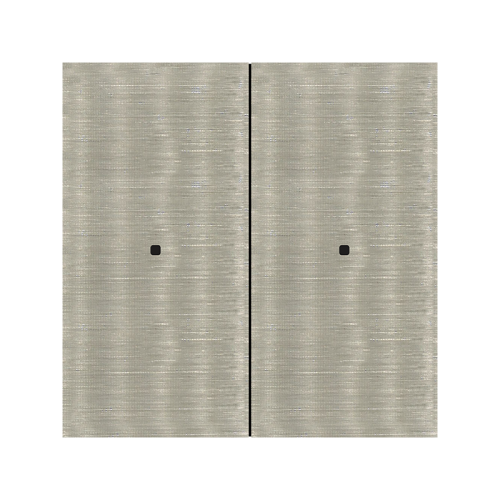

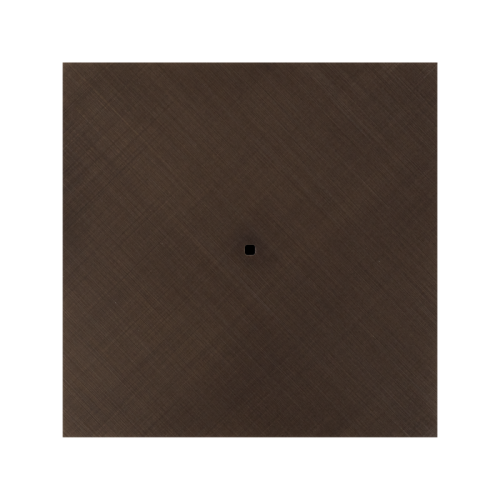

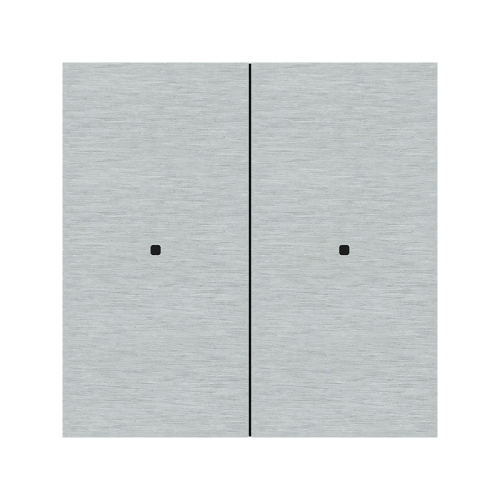

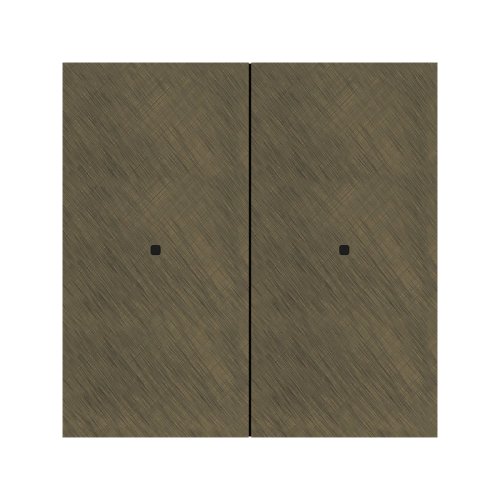

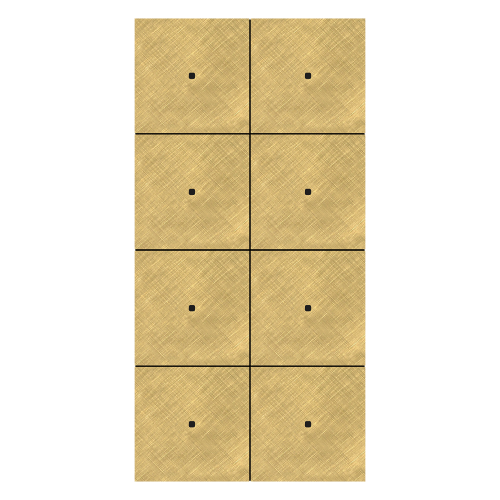

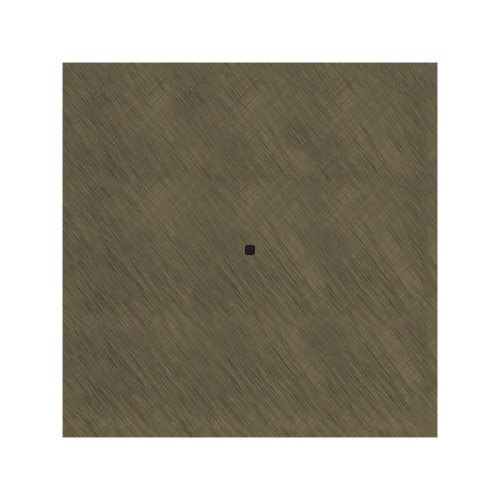

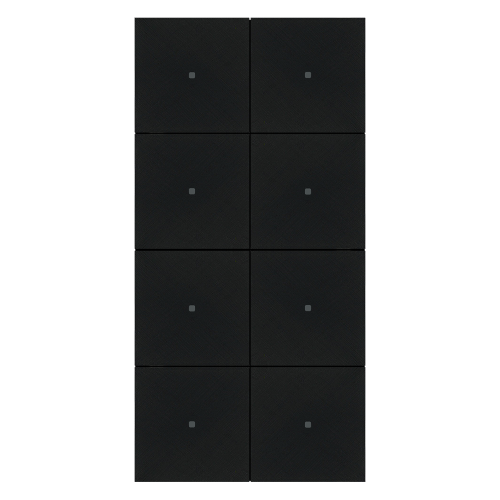

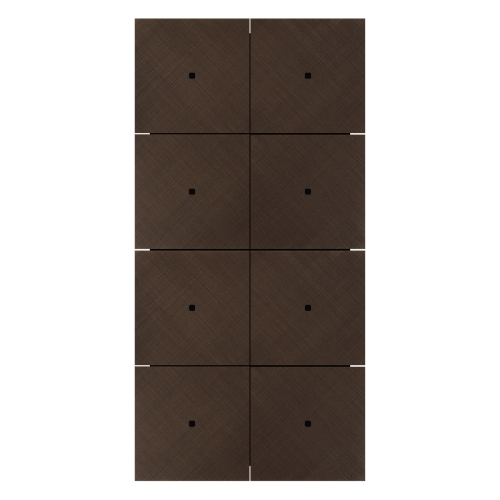

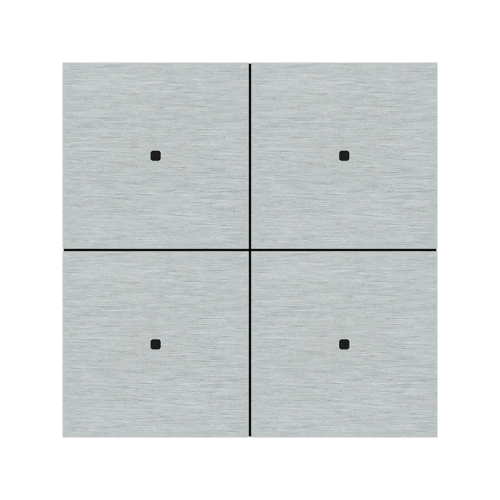

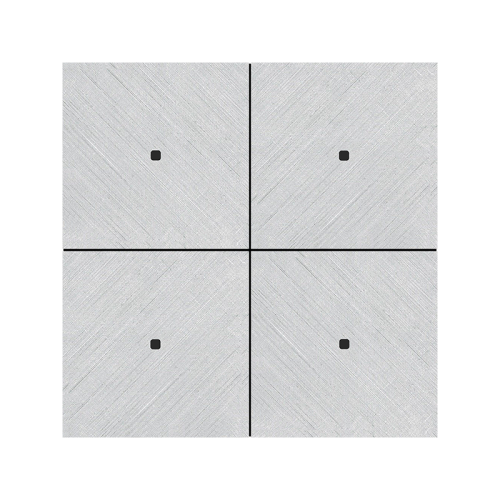

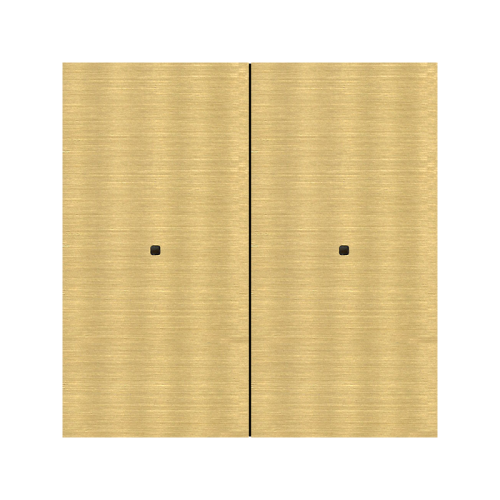

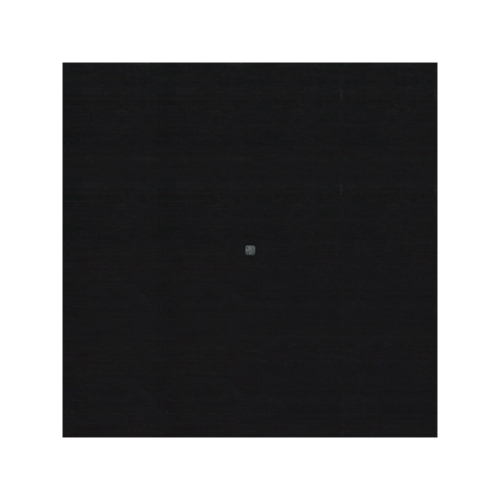

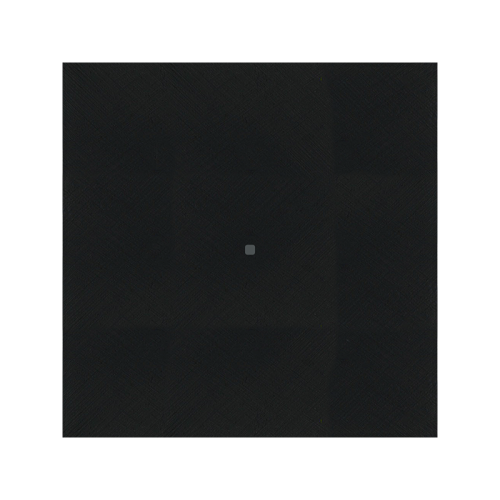

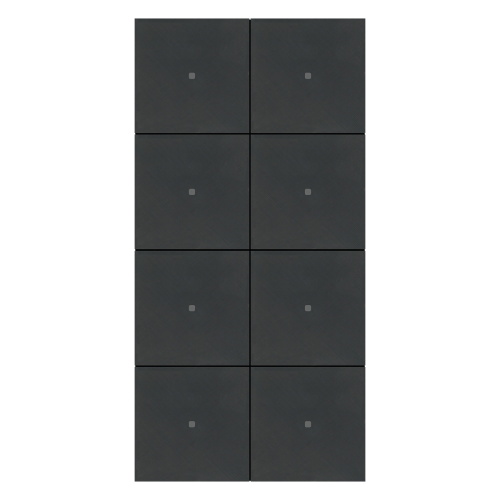

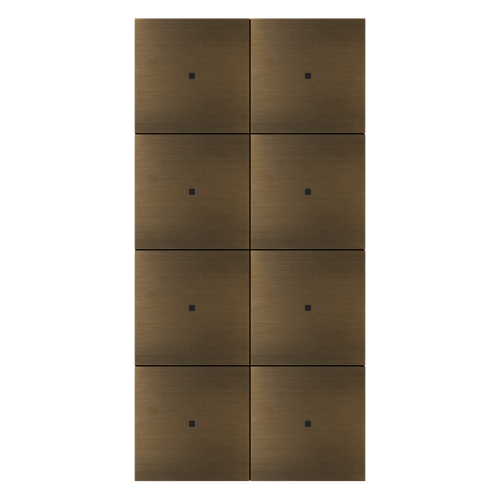

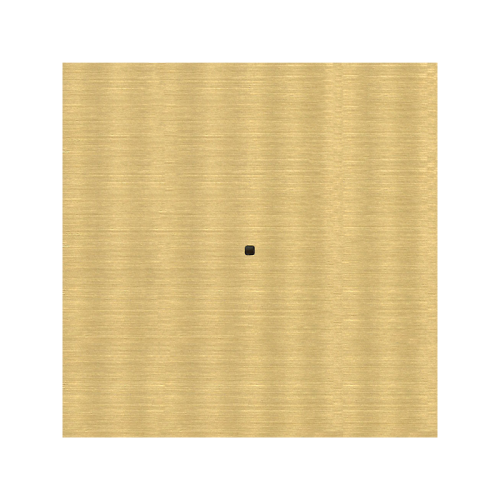

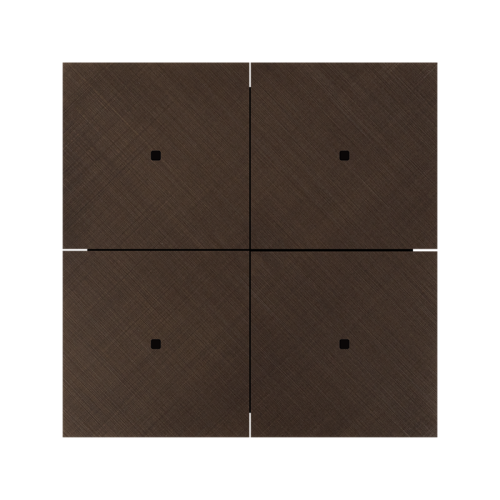

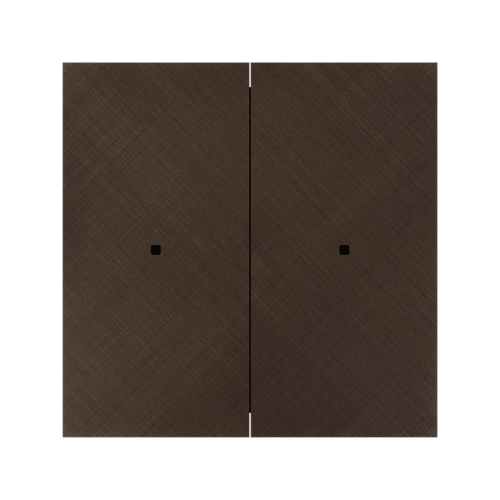

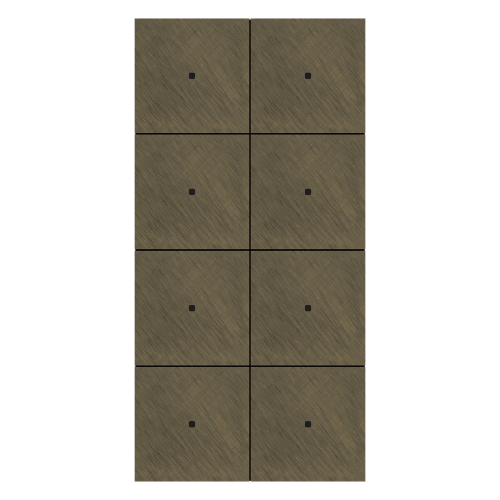

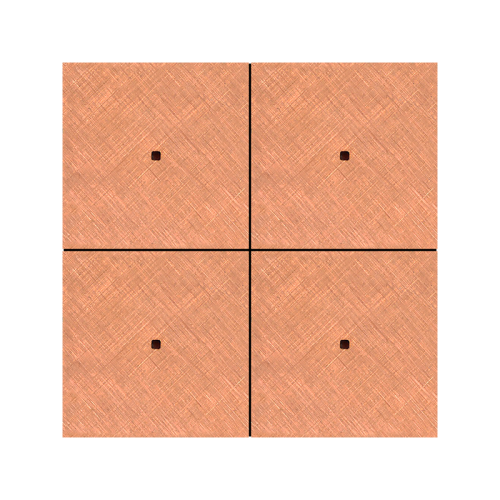

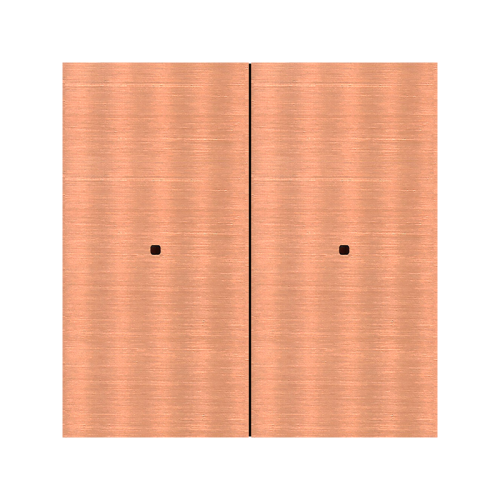

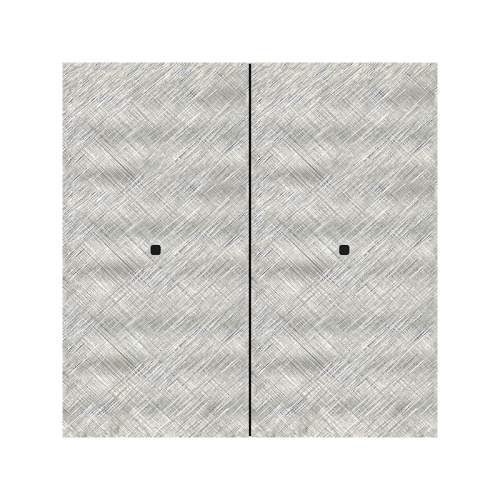

The ‘Intensity’ Tense push-button triggers KNX telegrams after being touched, depending on the parameters. The sensor surfaces can be set as single button function (e.g. INT-xxxxx8: 8 single sensor surfaces).
The RGBW status LEDs can be controlled with internal or external objects. The LED brightness can be controlled via a day/night and brightness object.
In addition to switching, dimming, blinds, scenes or sending values, a number of other functions are available. The Tense push-button ‘Intensity’ has 4 integrated logic modules and a slap function with an additional switching channel. A second object can be sent via the logic modules.
The Tense push-button ‘Intensity’ has an innovative group control with long/extra-long keypress. For example, a long keypress can be used to move a blind UP and DOWN as normal, while an extra-long keypress moves all the blinds in the room. The multi-touch function allows up to 4 values/datapoint types to be sent to one or more objects. This means that different lighting groups can be switched with a single button, for example, tap once for ceiling light, tap twice for wall light, etc.
The Tense push-button ‘Intensity’ is designed for installation in installation boxes. It must be installed in dry indoor areas.
Features
- Production in Engelskirchen, certified according to ISO 9001
- Comprehensive application
- Multitouch-function, sends up to 4 values/DPTs to the same or different objects
- Innovative group control with long/extra-long keypress
- Single-button operation for switching, dimming, blinds, values
- Toggle values/scenes with up to 4 values
- Short/long keypress with 2 objects
- Slap function with additional switching channel (only for 4 gang and 8 gang push buttons)
- KNX Data-Secure ready
- LED brightness adjustable via day/night or brightness object
- 4 Logic functions
- Installation in installation box
- Integrated bus coupler
- 3-year product warranty
