6-way binary input FIX1. Manual control and LED switching status display for each channel. Suitable for SELV if all inputs are connected with SELV.
Function description
- 6-way binary input FIX1
- 6 floating universal and wide-range voltage inputs (10-240 V AC/DC or internally generated auxiliary voltage of approx. 12 V DC)
- 2 additional channels operable by buttons on the device, but without input
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
- Manual operation per channel for simulating the input states

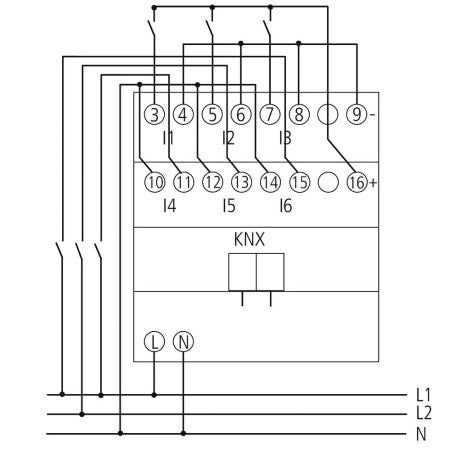

- All inputs can be operated with different voltages and at different potentials
- Connectable cable length up to 100 m
- Free allocation of functions: switch/push button, dimming, blinds/roller blinds, counter, repeat telegram, sequences
Technical data
|
| Operating voltage KNX |
Bus voltage, ≤4 mA |
| Operating voltage |
110 – 240 V AC 50 – 60 Hz |
| Frequency |
50 – 60 Hz |
| Stand-by consumption |
~0.3 W |
| Width |
4 modules |
| Installation type |
DIN rail |
| Type of connection |
KNX bus terminal |
| Max. cable cross section |
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm² |
| Voltage inputs |
10 V DC – 240 V AC 2 mA |
| Max. cable length |
100 m |
| Output |
12 V DC/18 mA, SELV |
| Display |
6 LEDs zur Anzeige des Zustandes am Eingang |
| Suitable for SELV |
Yes, if all inputs are connected with SELV |
| Ambient temperature |
-5°C ... 45°C |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 730-1 |
