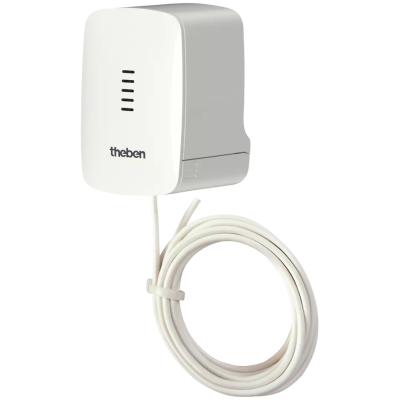

CHEOPS S 10m KNX

Function description

• Motorised KNX actuator for heating and cooling valves
• Integrated temperature sensor
• Pre-configured cable, length 10 m
• Integrated controller for efficient heating and cooling with one additional stage each
• High actuating force of up to 220 N with a maximum valve stroke of 8 mm
• 2 universal binary inputs, connection option e.g. for external temperature sensor, window contact, presence detector or push-button
• Integrated logic for up to 10 window contacts
• Can be used in the heating circuit distributor
• Integrated bus coupling unit
• Automatic valve adaptation
• Universally applicable due to large range of valve adapters
• 2 different valve adapters for the most common valves M30x1.5 and Danfoss included (VA 10, VA 100)
• Secure commissioning and communication through support of KNX Data Secure

Technical data
