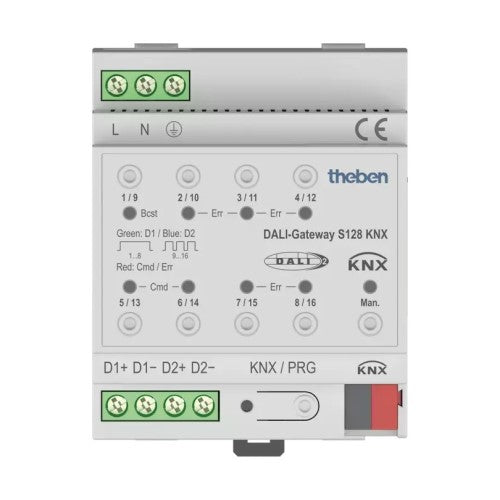

The Interface between the DALI and the KNX system, DALI-2 certified with 2 channels for 2x64 DALI lights with a maximum of 64 DALI members can be connected to a DALI output.
Function description
- Interface between the DALI and the KNX system, DALI-2 certified
- 2 channels for 2x64 DALI lights
- A maximum of 64 DALI members can be connected to a DALI output
- Up to 16 groups can be switched
- Support of DALI "Device Type 8" (DT8) for controlling light color, brightness and color temperature
- Time-dependent color control (also for Human Centric Lighting applications)
- Scene module for up to 16 different groups
- Effect module for sequencers
- Energy saving by switching off the ECG voltage supply in the groups (communication object)
- Simple replacement of ECGs in the event of a fault
- The DALI start-up takes place via the ETS plug-in
Technical data
|
| Operating voltage KNX |
Bus voltage, <10 mA |
| Operating voltage |
100 – 240 V AC/DC 50 – 60 Hz |
| Frequency |
50 – 60 Hz |
| Width |
4 modules |
| Installation type |
DIN rail |
| Type of connection |
Terminal screws | Bus connection: KNX bus terminal |
| Ambient temperature |
-5°C ... 45°C |
| Stock temperature |
-25°C ... 70°C |
| Protection class |
I |
| Type of protection |
IP 20 |
