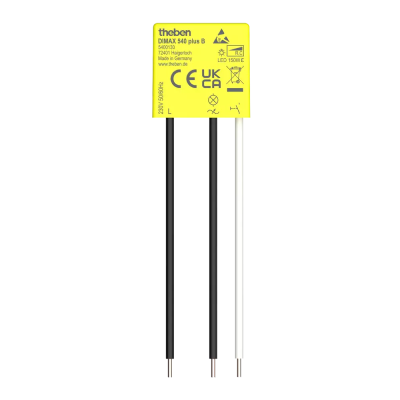

DIMAX 540 plus B

Name: DIMAX 540 plus B
Brand: Theben
SKU: THE5400130
Price: 29.0 GBP
Availability: InStock

ThebenSKU: THE5400130

Price:

£29.00

VAT calculated at checkout

Stock:

Call For Availability

Quantity:

Share this product

Function description

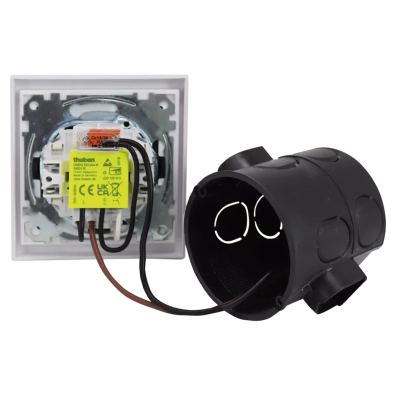

Flush-mounted dimmer for R and C loads
Optimised settings for LEDs and incandescent lamps
No neutral conductor necessary
Small design, perfect for retrofitting
Completely encapsulated electronics
Temperature cut-off
Overcurrent cut-off
Short-circuit fuse
Memory function saves the most recently set light level value and then dims to this value the next time it is switched on
Function minimum brightness (10% in state of delivery, adjustable)
Dimensions 25,5 x 26,4 x 10,4 mm

Operating voltage	230 V AC
Frequency	50 - 60 Hz
Installation type	Flush-mounted
Stand-by consumption	~0.34 W
Incandescent/halogen lamp load	150 W
LED lamp 2-8 W	150 W
Setting	Push-button
Max. cable length	100 m
Ambient temperature	-10°C ... 45°C

Range: DINMAX

Installation: Flush Mounted

MPN: 5400130
