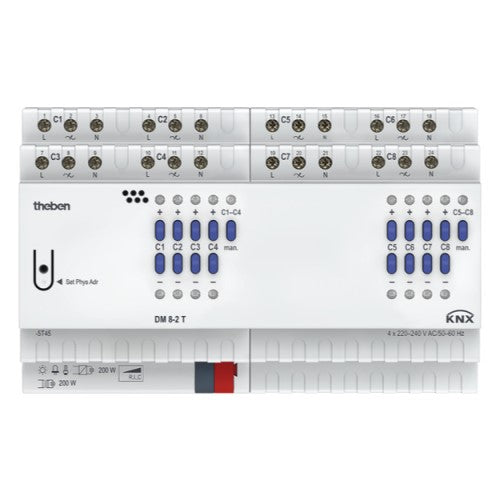

For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps. Dimming output: 200 W per channel. 8-way universal dimmer actuator FIX2.
Function description
- 8-way universal dimmer actuator FIX2
- For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
- Also suitable for dimming of dimmable energy-saving lamps
- Also suitable for controlling fans
- LED switching status display for each channel
- Manual operation on device
- Dimming output: 200 W per channel
- Automatic load detection (can be deactivated)
- For R, L and C loads
Technical data
|
| Operating voltage KNX |
Bus voltage, ≤17.5 mA |
| Operating voltage |
230 – 240 V AC 50 – 60 Hz |
| Frequency |
50 – 60 Hz |
| Stand-by consumption |
<1 W |
| Width |
8 modules |
| Installation type |
DIN rail |
| Type of connection |
Terminal screws | Bus connection: KNX bus terminal |
| Max. cable cross section |
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm² |
| Number of channels |
8 |
| Lamp types |
Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED |
| Incandescent/halogen lamp load |
200 W |
| LED lamp |
Trailing edge (RC-mode): 200 W |
| Energy saving lamps |
Trailing edge (RC-mode): 200 W |
| Switching capacity min. |
2 W |
| Max. cable length |
100 m |
| Ambient temperature |
-5°C ... 45°C |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 669 |
