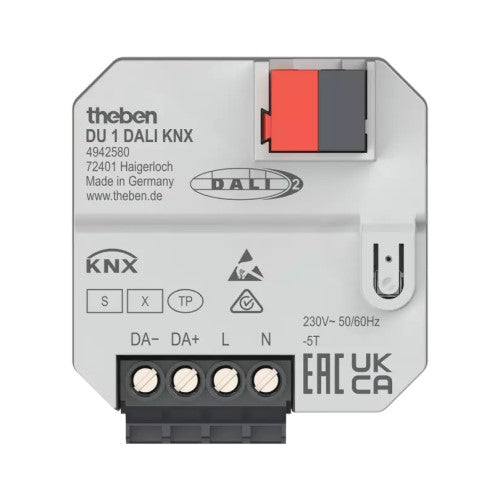

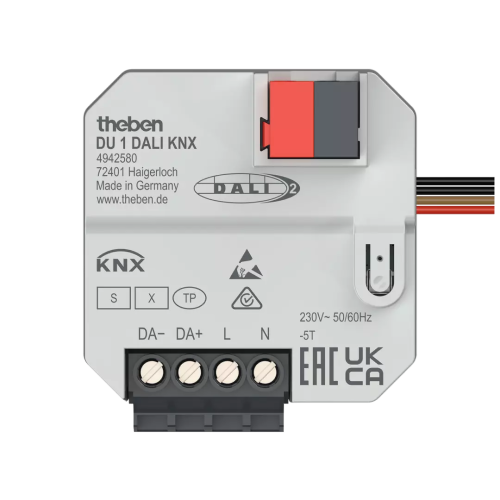

DU 1 DALI KNX

Function description

• Flush-mounted 1-way DALI actuator, KNX TP, Data Secure
• DALI-2 certified
• Interface between the DALI and the KNX bus system

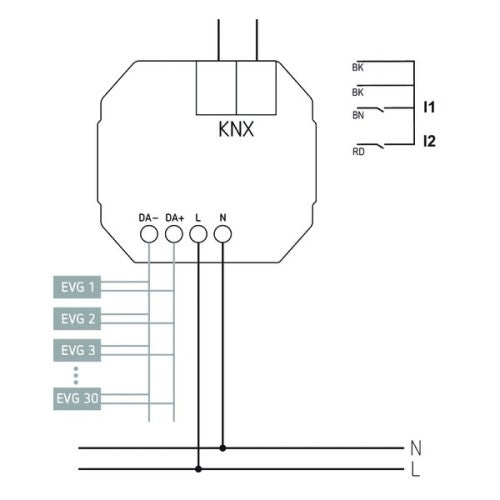

• Simple commissioning of up to 30 ECGs in broadcast mode
• Control of RGB, RGBW, Tunable White or conventional luminaires
• DT-8 luminaire support
• Easy replacement of ECGs in the event of a fault
• Universal mounting thanks to the compact housing
• 2 binary inputs for potential-free contacts such as pushbuttons, switches, window contacts, temperature sensor (input I2)
• The binary input I1 is assigned to the output ex works (function test and operation even without programming)
• Integrated temperature monitoring for increased operational safety, e.g. in case of overload
• Secure communication through support of KNX Data Secure
