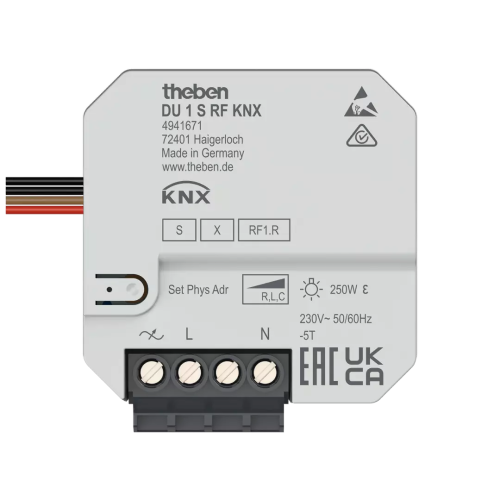

DU 1 S RF KNX

Function description

• Flush-mounted 1-way dimming actuator 250 W, KNX TP, Data Secure
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• Optimised dimming output for dimmable energy-saving lamps, LEDs, incandescent and halogen lamps, and dimmable transformers.
• Easy to adapt to different lamps thanks to automatic load detection
• Adjustable dimming curve for precise and flicker-free dimming
• Secure communication via KNX-RF with support from KNX Data Secure
• Easy installation due to the compact housing.
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
• The binary inputs are assigned to the output as standard (function test before programming)


Technical data
