Name: HM 6 T KNX
Brand: Theben
SKU: THE4940240
Price: 210.0 GBP
Availability: InStock

6-way heating actuator FIX1
With 6 temperature controllers (P/PI) for heating and cooling

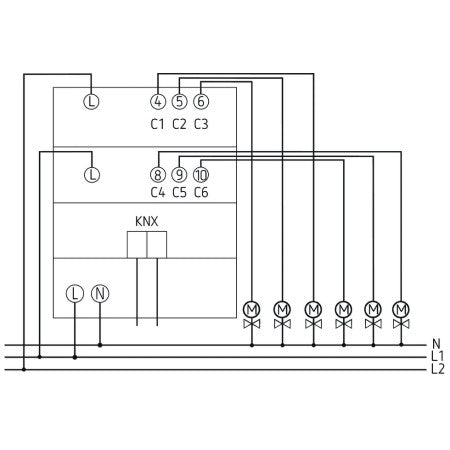

For controlling thermal actuators 24 V - 240 V AC in 2 groups with 3 outputs and 450 mA each
(Due to the switch-on behaviour of the actuators, we recommend not to exceed a maximum load of 3x1 actuators 24 V AC or 3x5 actuators 230 V AC)
Short-circuit-proof and overcharge protected
Continuous or switching actuating value selectable
Valve protection function can be deactivated
With the modes: comfort, standby, night as well as frost/heating protection
Changeover to summer mode possible
LED switching status display for each channel
Manual operation on device (even without bus connection)

Operating voltage KNX	Bus voltage, ≤4 mA
Operating voltage	110 – 240 V AC 50 – 60 Hz
Frequency	50 – 60 Hz
Stand-by consumption	~0.5 W
Width	4 modules
Installation type	DIN rail
Number of channels	6
Type of connection	Terminal screws \| Bus connection: KNX bus terminal
Max. cable cross section	Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² \| Stranded wire with end sleeve: 0.5 mm² to 4 mm²
Switching output	Not potential-free
Output	Triac, 0.45 A
Voltage output	24 V AC - – 240 V AC
Frequency output	50 – 60 Hz
Suitable for SELV	Yes if all channels switch at SELV
Switching of various phases	Possible
Ambient temperature	-5°C ... 45°C
Type of protection	IP 20
Protection class	II according to EN 60 669

Output Channels: 6

Medium: KNX TP

Range: FIX

Installation: Din Mounted

Module Size: 4 Module
