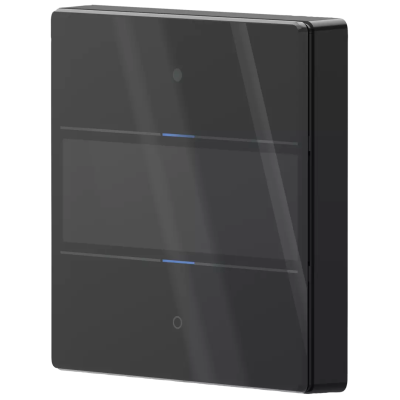

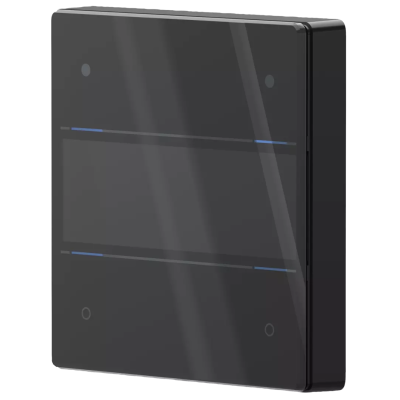

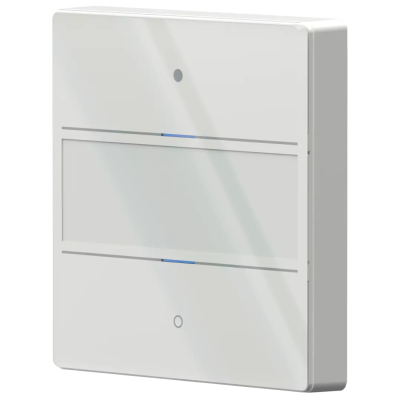

iON KNX Glass

• 2- or 4-way glass push button sensor, KNX TP, Data Secure
• Touch sensor with 2/4 buttons and 2/4 status LEDs with integrated temperature sensor
• Control of the following functions: switching, dimming, blinds, value transmitter, operating mode, scene, color control, sequence
• Secure commissioning and communication through support of KNX Data Secure
• Up to 3 different telegrams per button
• Send different telegrams with short, long, or double clicks
• Multicolor status LEDs with adjustable colors for each LED separately
• Behavior of each status LED adjustable: static, flashing, or pulsing
• Brightness of each status LED individually adjustable via object or parameter
• Automatic brightness control of the status LEDs depending on the ambient brightness
• Integrated temperature sensor for visualization and temperature control via heating actuators
• Function monitoring via object (signaling of disassembly)
• Vertical mounting of two iON push-button sensors on standard double socket with accessories possible
• Transparent cover for individual labeling included in delivery
• Surface mounting possible with separate accessories (9080024/9080025)

Technical data
